RDS-90 4x4 Mini Core Drilling Rig

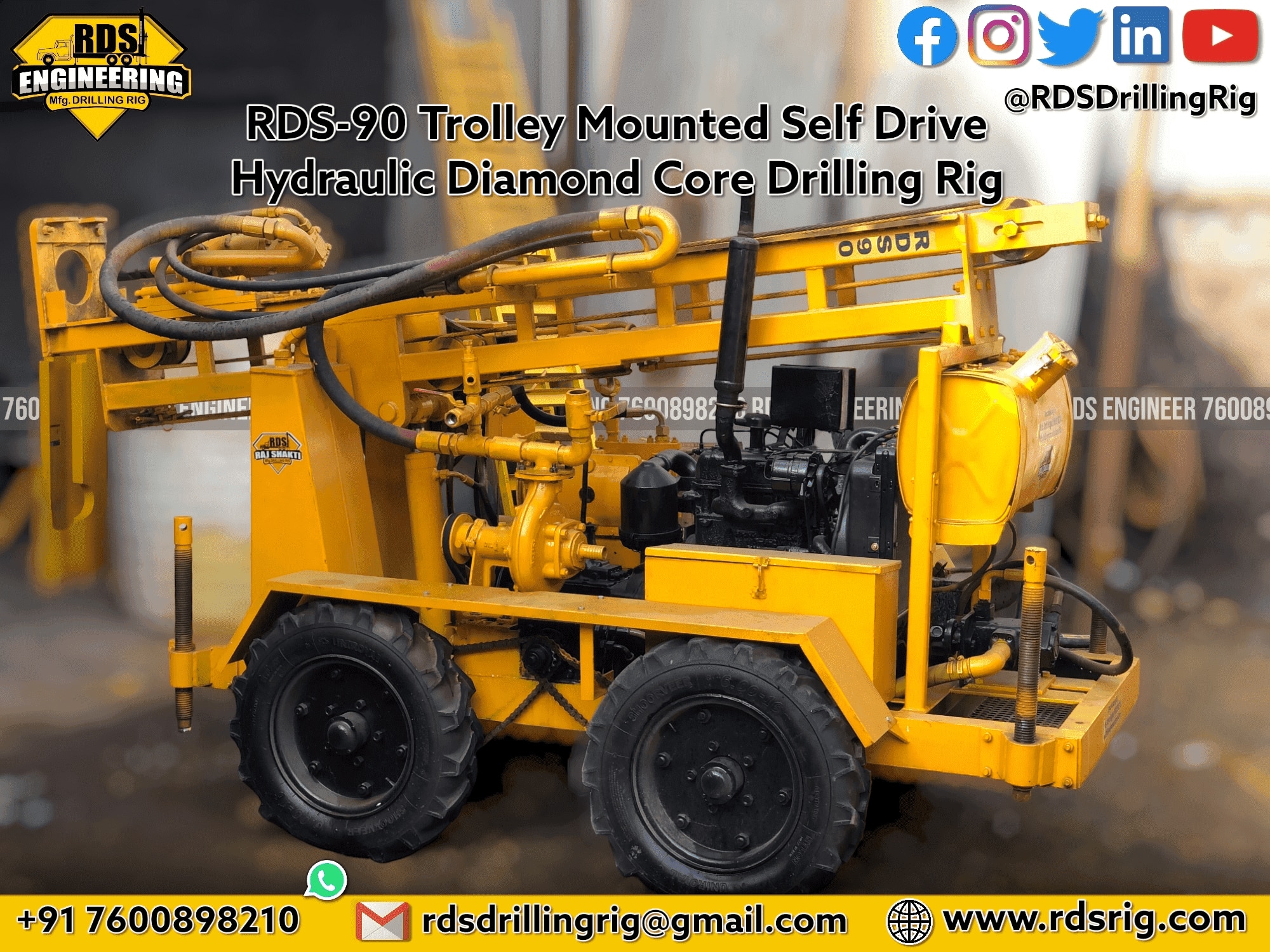

Model: RDS-90 Mini Portable Trolley Mounted Hydraulic Diamond Core Drilling Rig

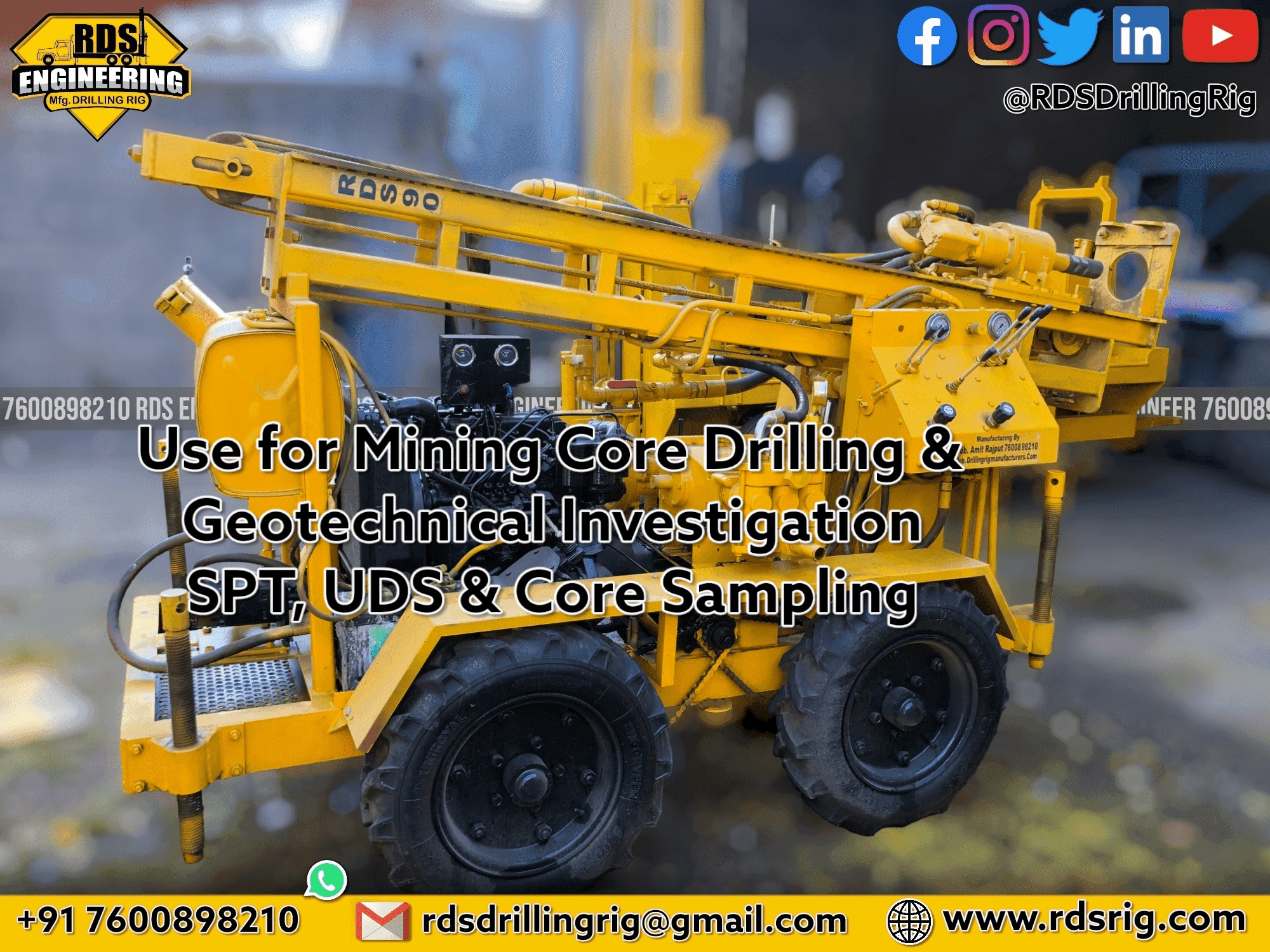

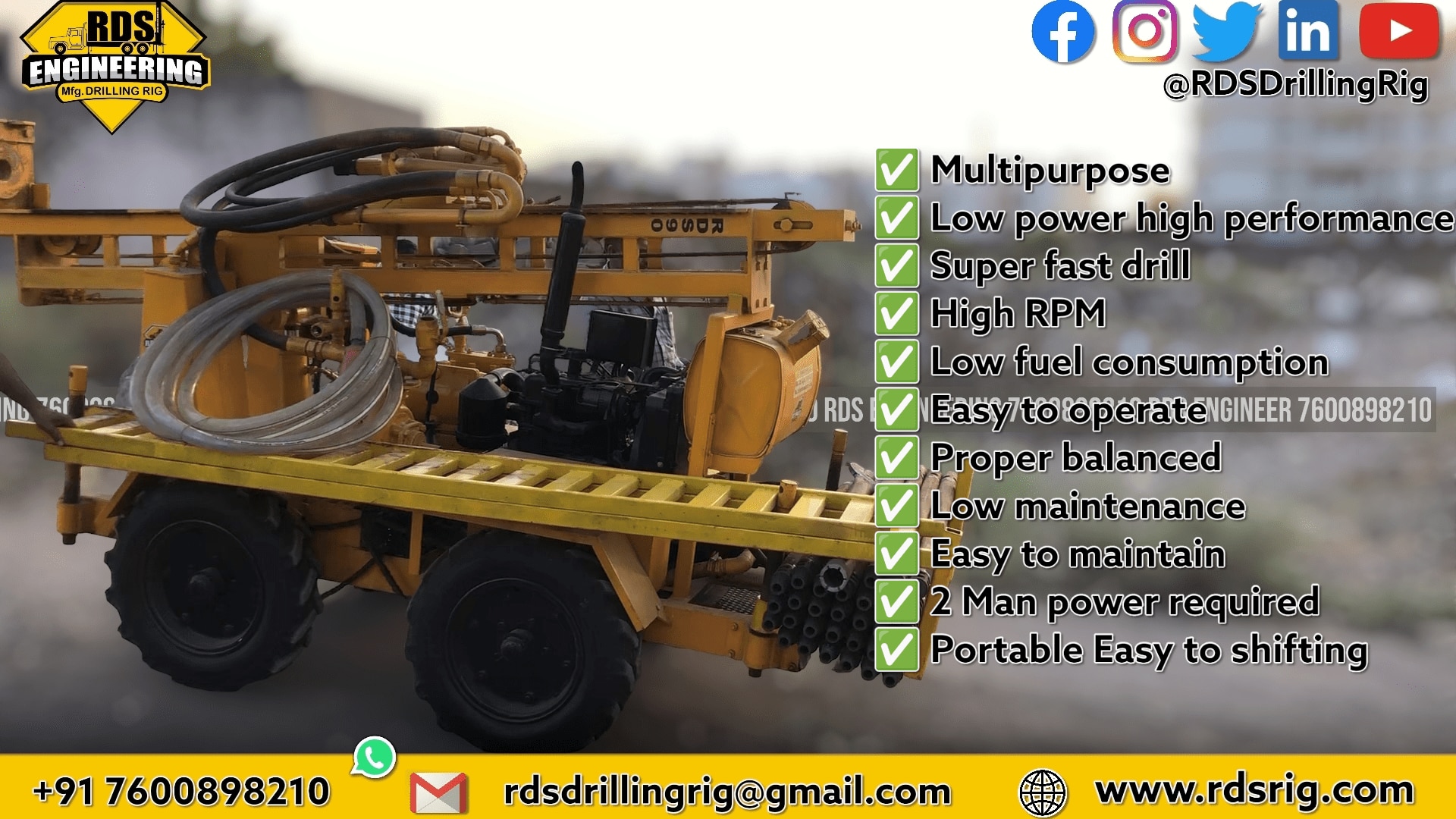

Application Use: Geotechnical, Mining Core Drilling

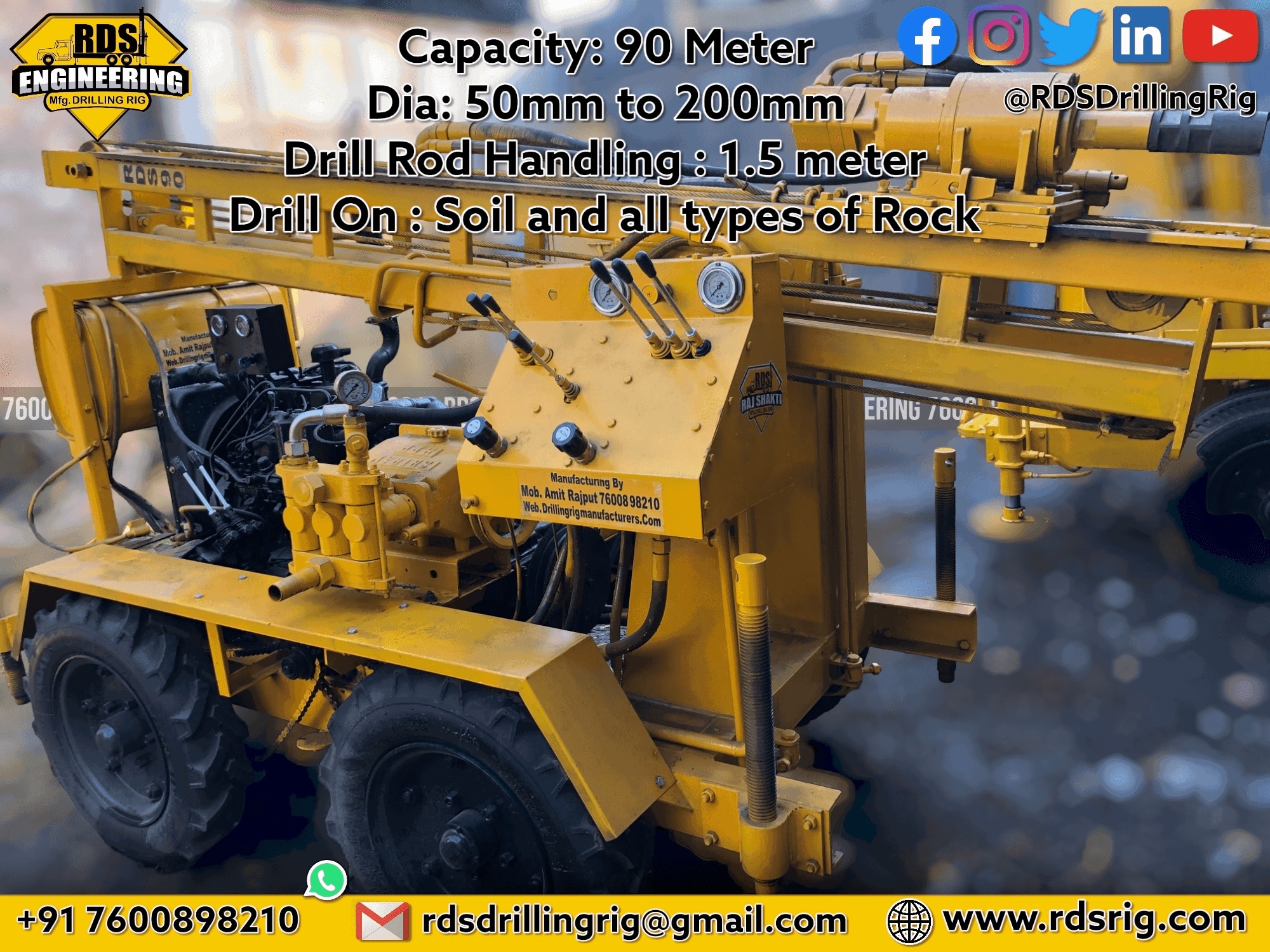

Capacity: Maximum Depth: 90 Meters (Soil and Rock)

Hole Diameter: 50mm to 300mm

Drilling On: Any Type of Soil, All Types of Hard rocks Like iron, granite, quartzite, bolder, etc.

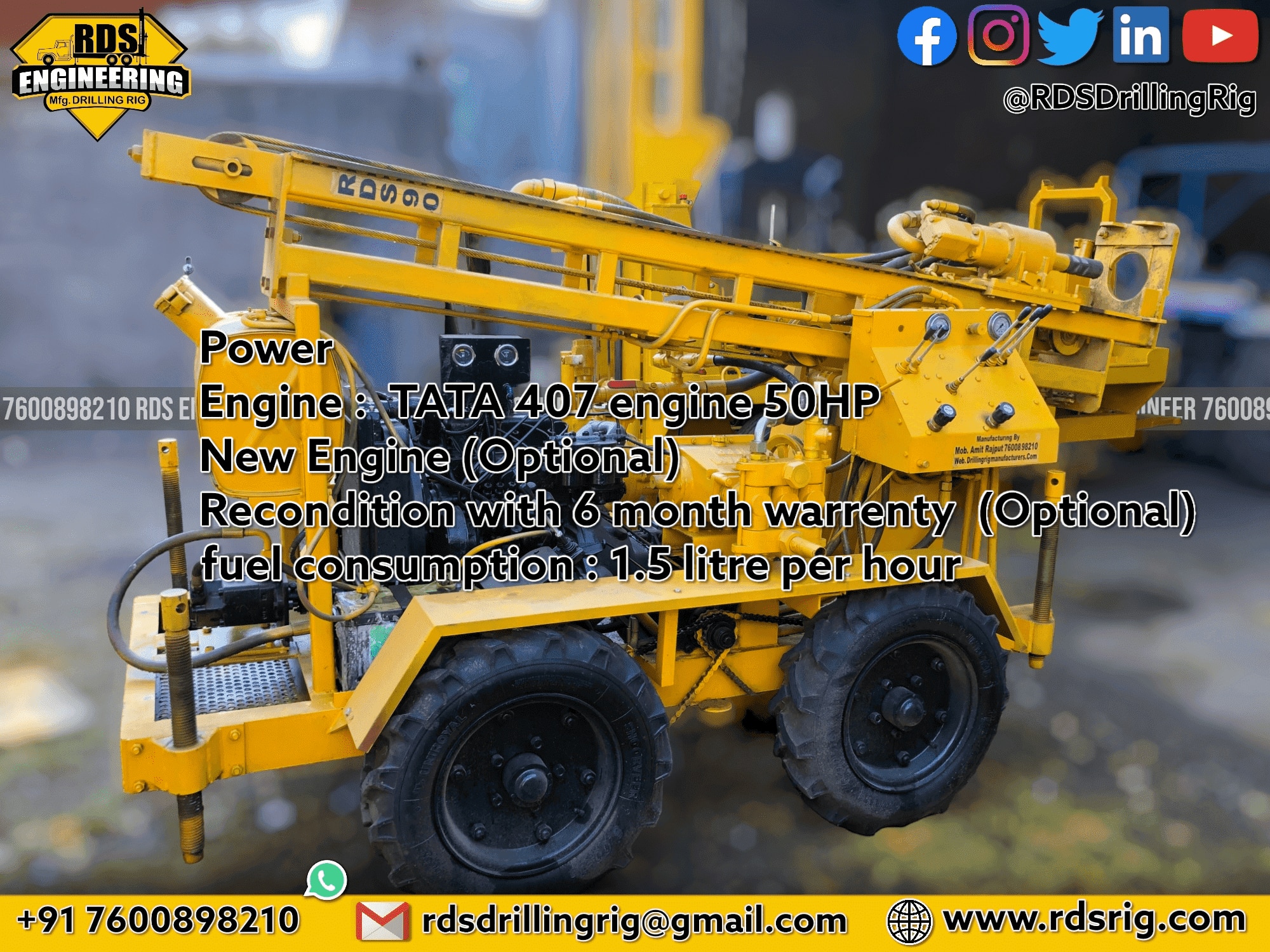

Power By: New Tata 407 engine, 3-cylinder engine, Recondition with a 6-month warranty (Optional)

Transmission: 5 forward gears 1 reverse gear (5F+1R) Vertical gearbox

Rotary Head (PTO): Rotation By Gearbox Thore or Rotation by Hydraulic 315 Motor (Optional),

variable speed: 50 to 600 RPM

Max Torque: 300 Nm

Water swivel: Stainless Steel Hard Chrome Shaft or Bush

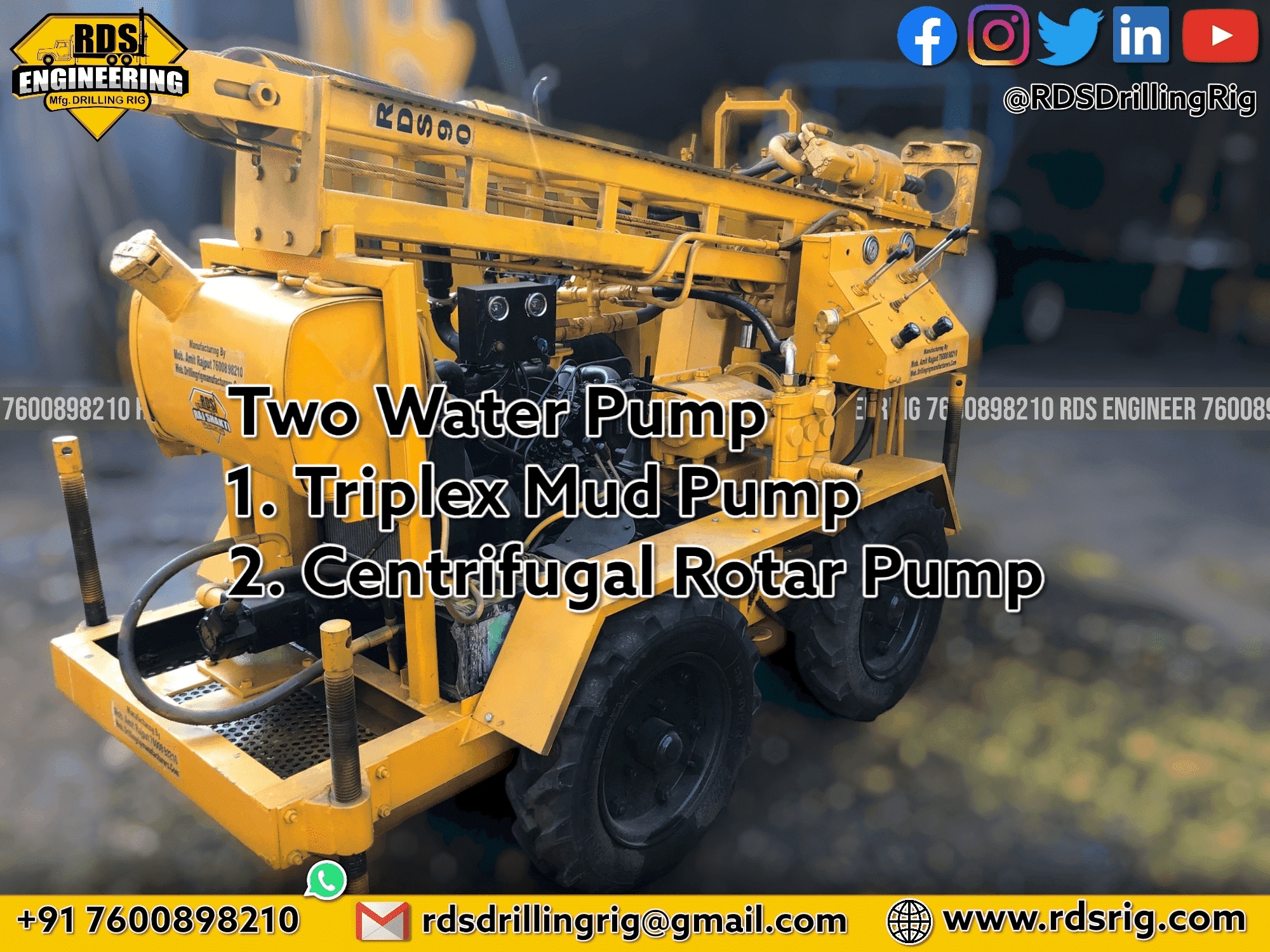

Water pump: Centrifugal Pump: 2.5" x 3" Flow

Triplex high-pressure piston mud pump: 80–150 LPM (Optional)

Hydraulic (6-month warranty)

Feed: 1 Hydraulic Cylinder with auto-feed function

Feed Force and Speed: Pull Up: 5500 kg/2000 psi, and Pull Up: 15 Meters/minute

Pull Down: 3500kg; Pull Down: 19 Meters/minute

Mast: 2 Hydraulic Cylinders

Leveling: 4 Hydraulic cylinders; proper levelling drill points with a separate lever

Manual 4-screw jack (Optional)

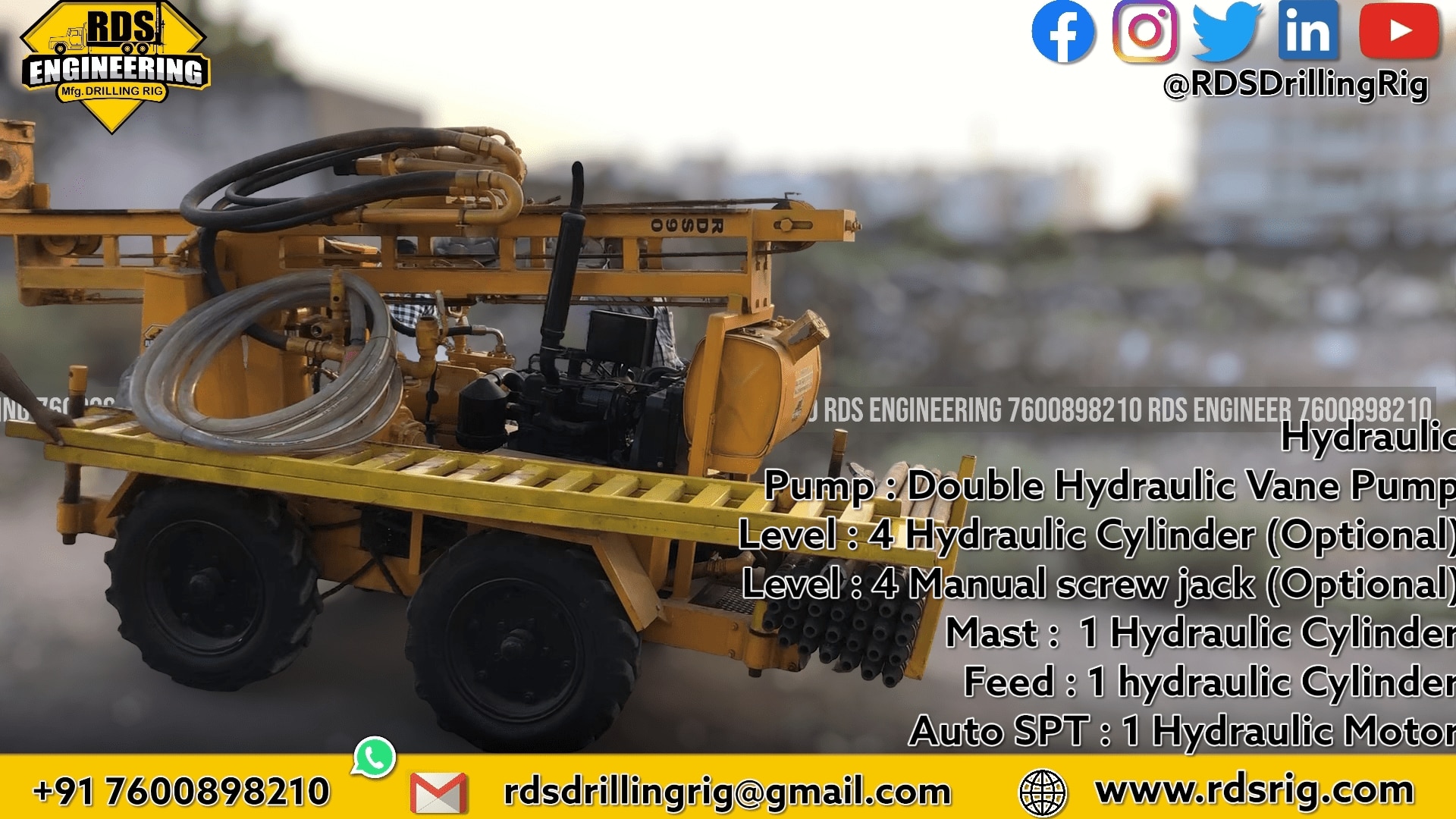

Hydraulic Pump: Double Hydraulic Vane Pump

Tank capacity: Hydraulic oil, 100 Liters

Hydraulic Motor: 315 Hydraulic Motor with wire rope winch pully for SPT

Control Box: Hydraulic Control valve with a separate microlever operational Easy to operate

Structure, Safety and Extra Accessories

Chassis: ISI Heavy 5” C-Channel Structure Proper balanced

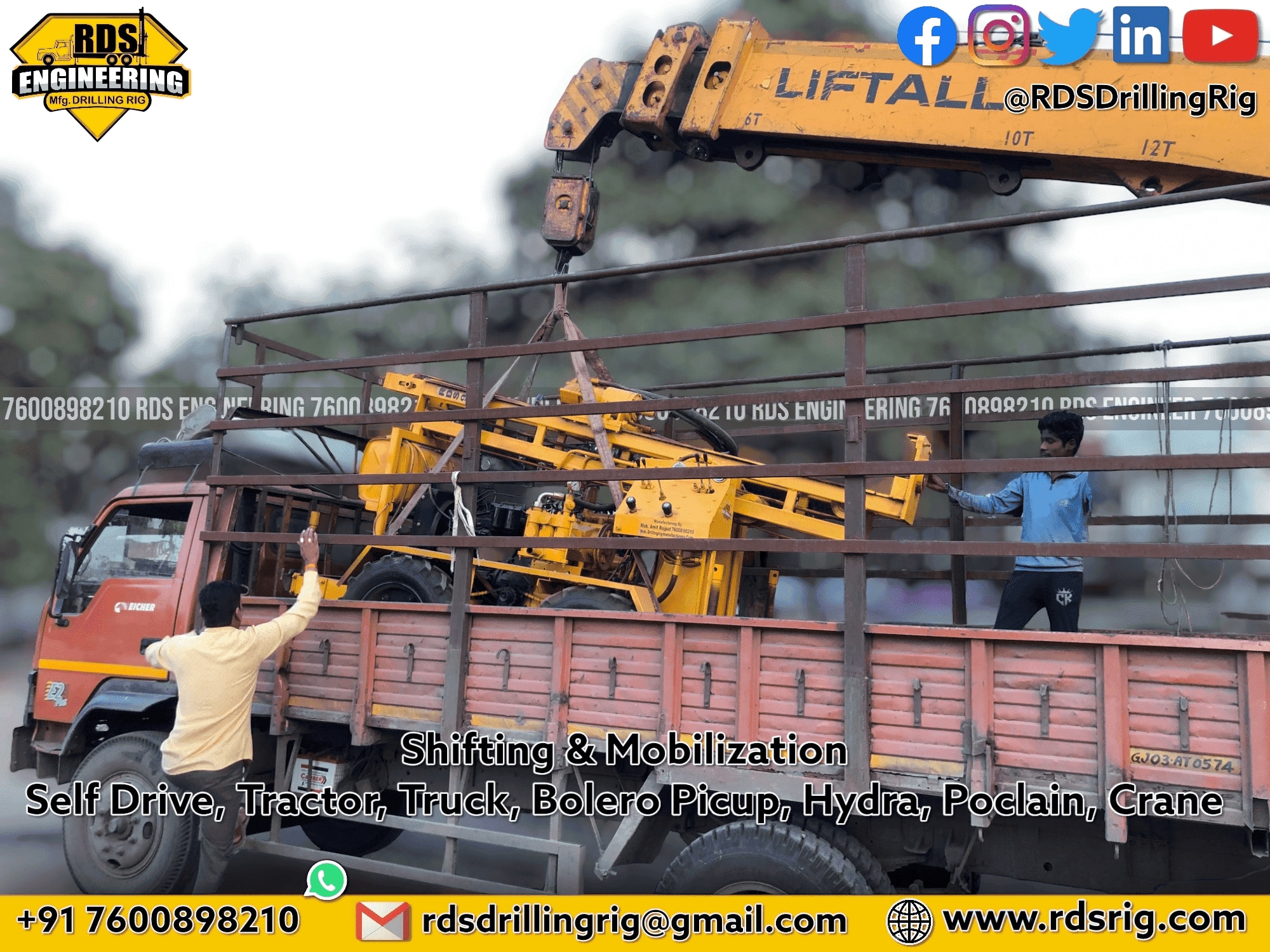

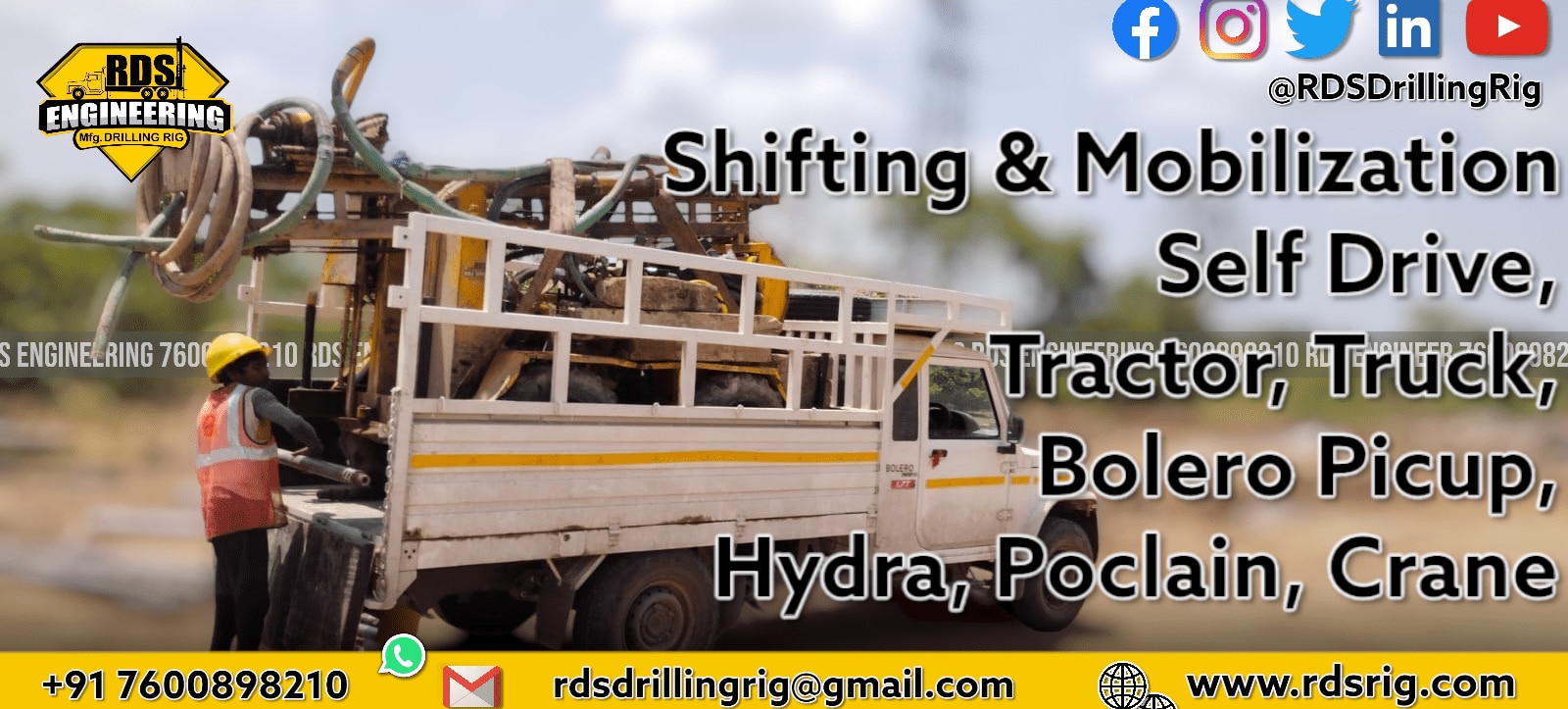

Mounting: Trolley mounting with four tyres

Mast: 8-foot-long channel structure with ISI Heavy 2” C channel Box Type

Drill Rod Handling: Rod Handling 5 feet, 1.5 meters

Diesel tank: 40 Liters

Safety: TPI Approve All part Safety Cover All Rotating parts safety grill

Additional accessories

Night Lights, Tools Box, Drill Rod stand, 36, 24 pipe wrench, Wire Rope

Pana Set, foot valve, section pipe, Return and steel valve,

Rig Dimension and Weight

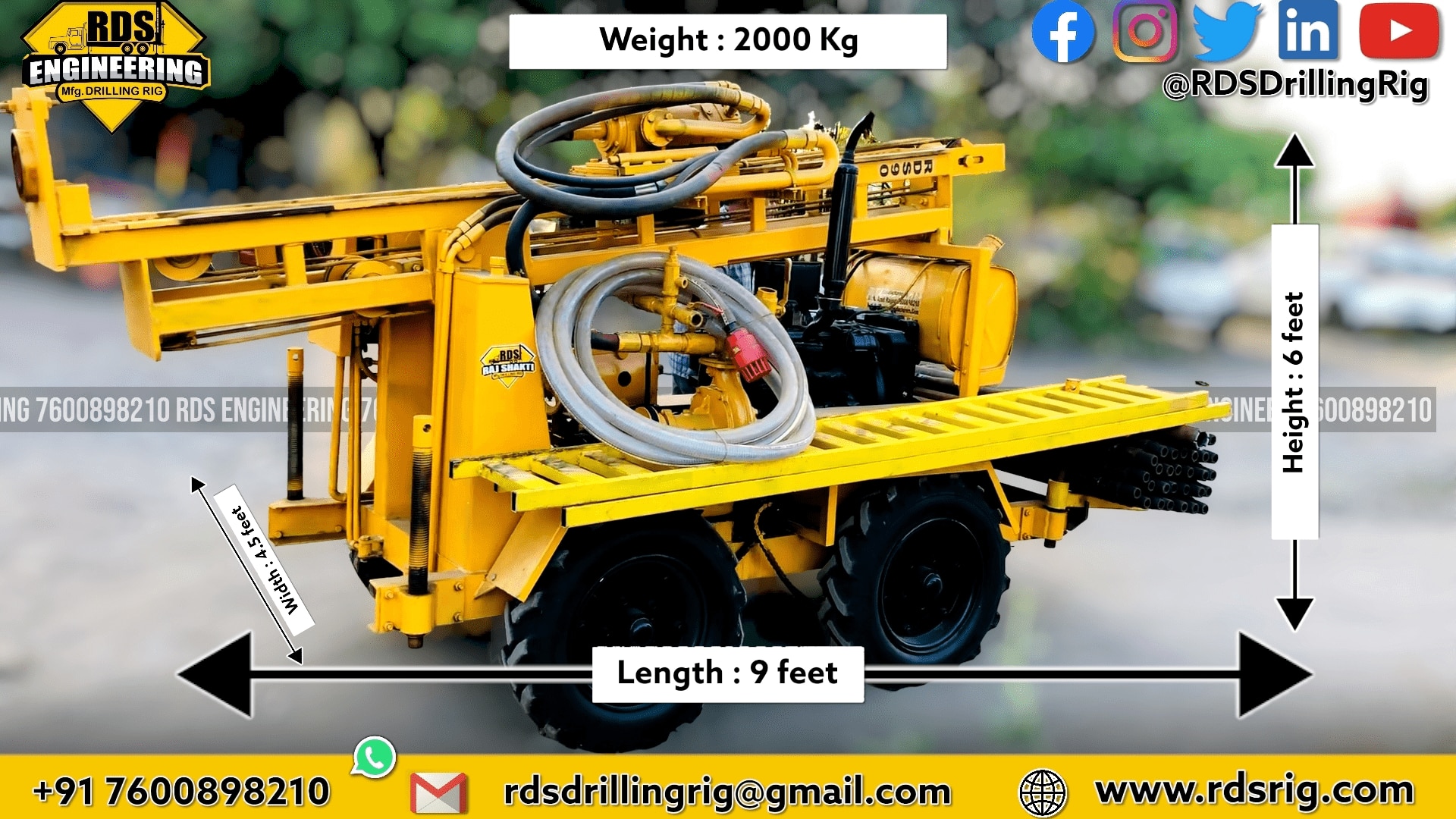

Length: 9 feet

Width: 4.5 feet

Height: 6.5 feet

Weight: 2000 Kg

Geotechnical Testing Equipment as per ISO 22476-3:2005

SPT Semi-Auto Hydraulic Motor with wire rope winch pully for SPT

SPT Assembly: SPT Sampler, SPT tube, SPT shoe

SPT Anvil Connection: AW / Customize

U.D.S. Tube (Shelby Tube):

Dimension Size: OD-73mm, ID-69mm, Length-600mm

Dimension Size: OD-106mm, ID-100mm, Length-500mm

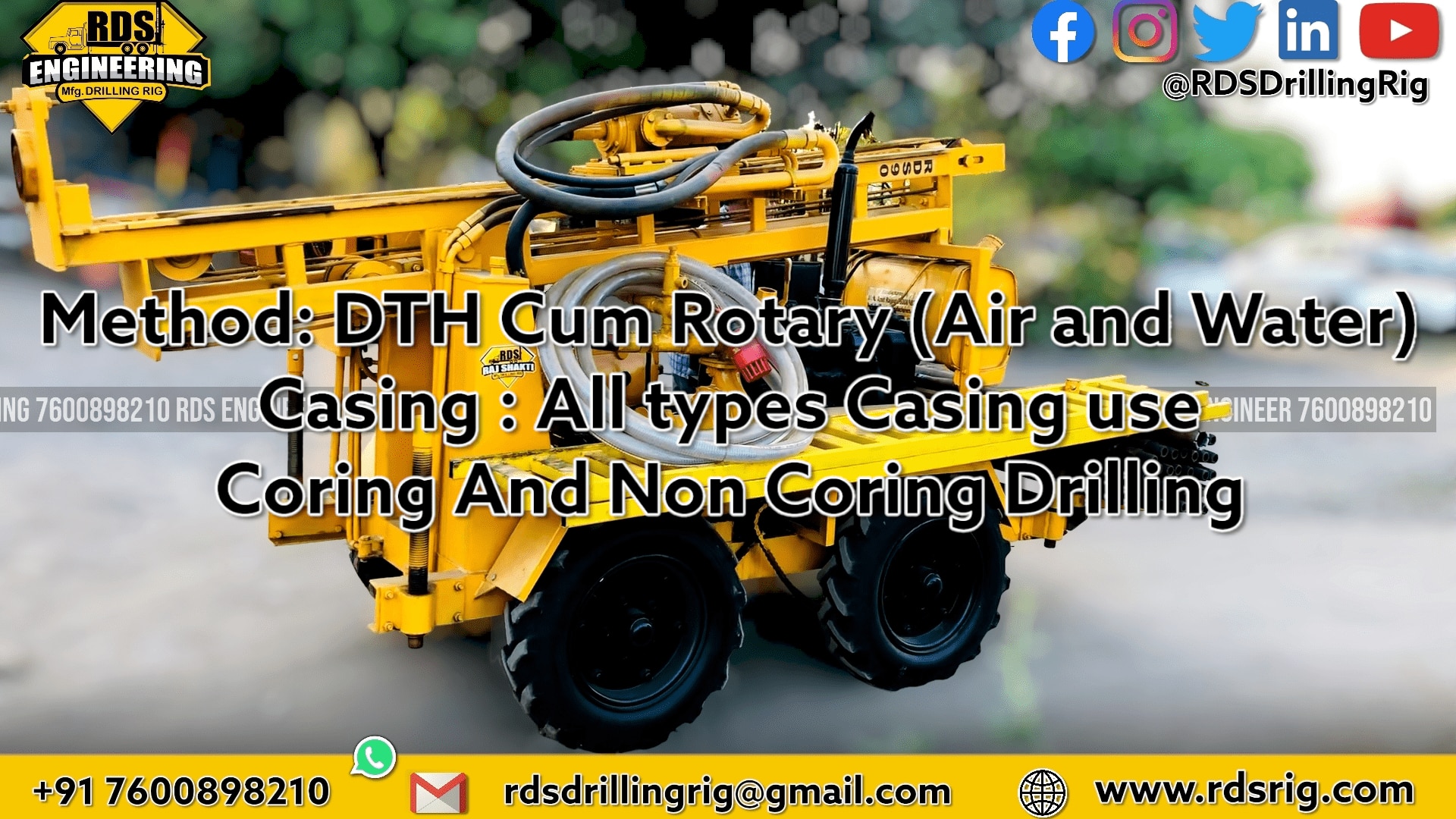

Core Drilling Mining Equipment

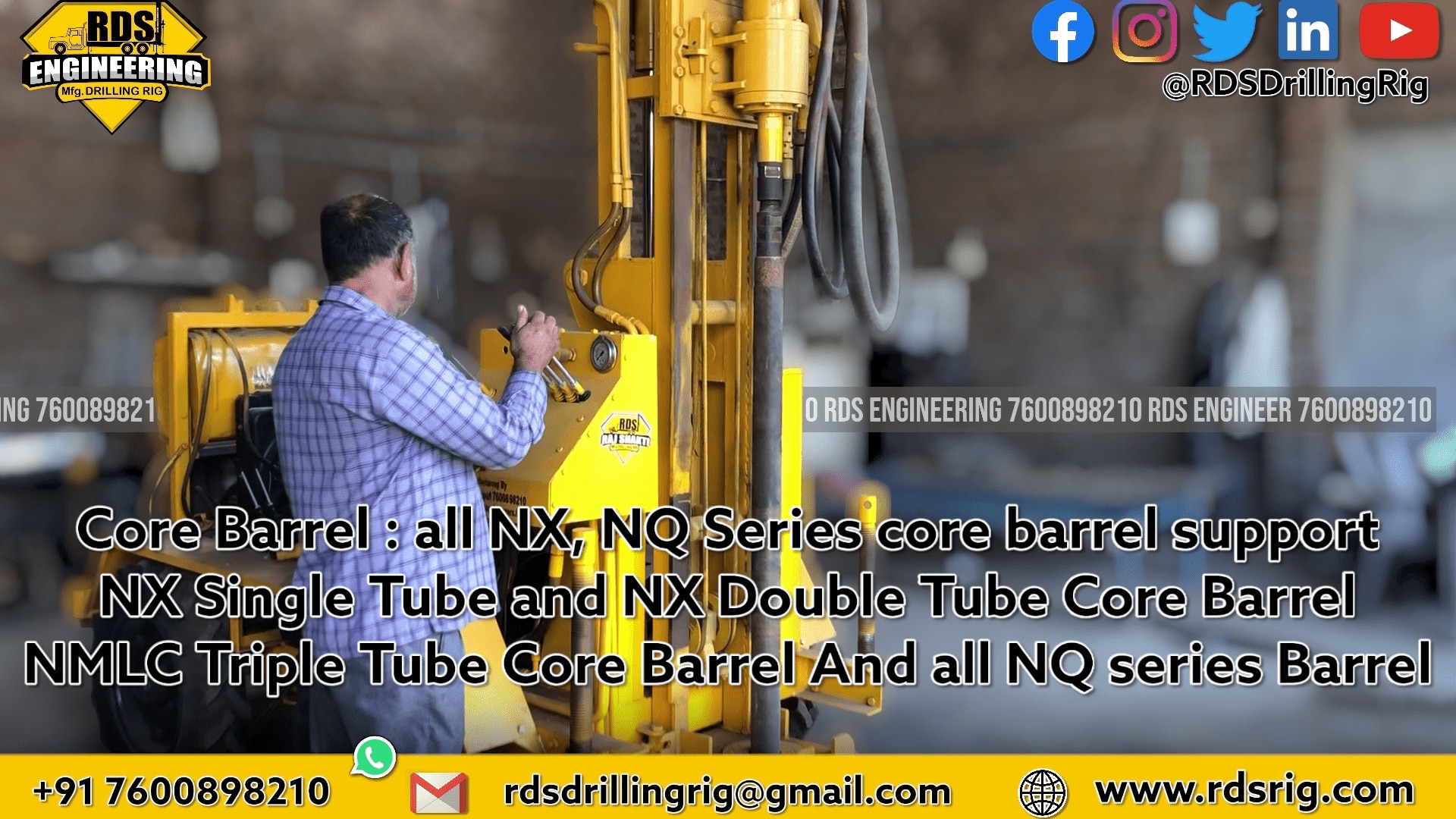

Core Barrel Support: Ax, Bx, Nx, AQ, BQ, NQ, NMLC Series Support

Single, Double, and Triple Tube Core Barrel Support

Casing Support: Axe, Bx, and Nx Casing Support

Drill Rod: Aw, Bw, Nw, Nq All Types of Drill Rod Support

RDS API Drill Rod: Special design for RDS-90

RDS API Drill Rod: Carbon steel seamless pipe, 60mm OD, 50mm ID, 5mm thickness, Weight 15 kg

RDS API Drill Rod Adapter: En39 material Adapter With harness tampering, CNC Threading and 12 shaping parts
