RDS-60 Mini Core Drilling Rig

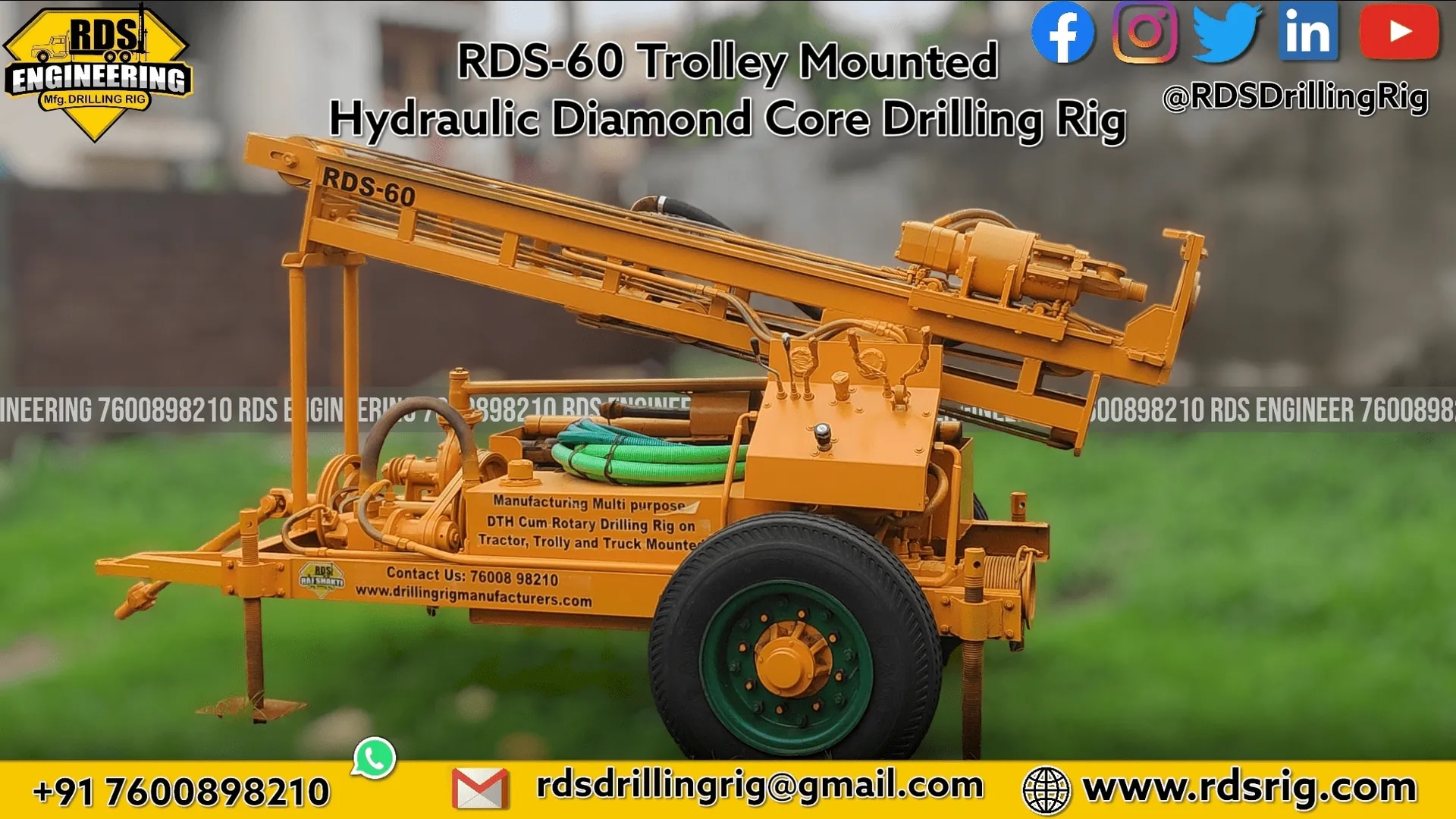

Model: RDS-60 Mini Portable Trolley Mounted Hydraulic Diamond Core Drilling Rig

Application Use: Geotechnical, Mining Core Drilling

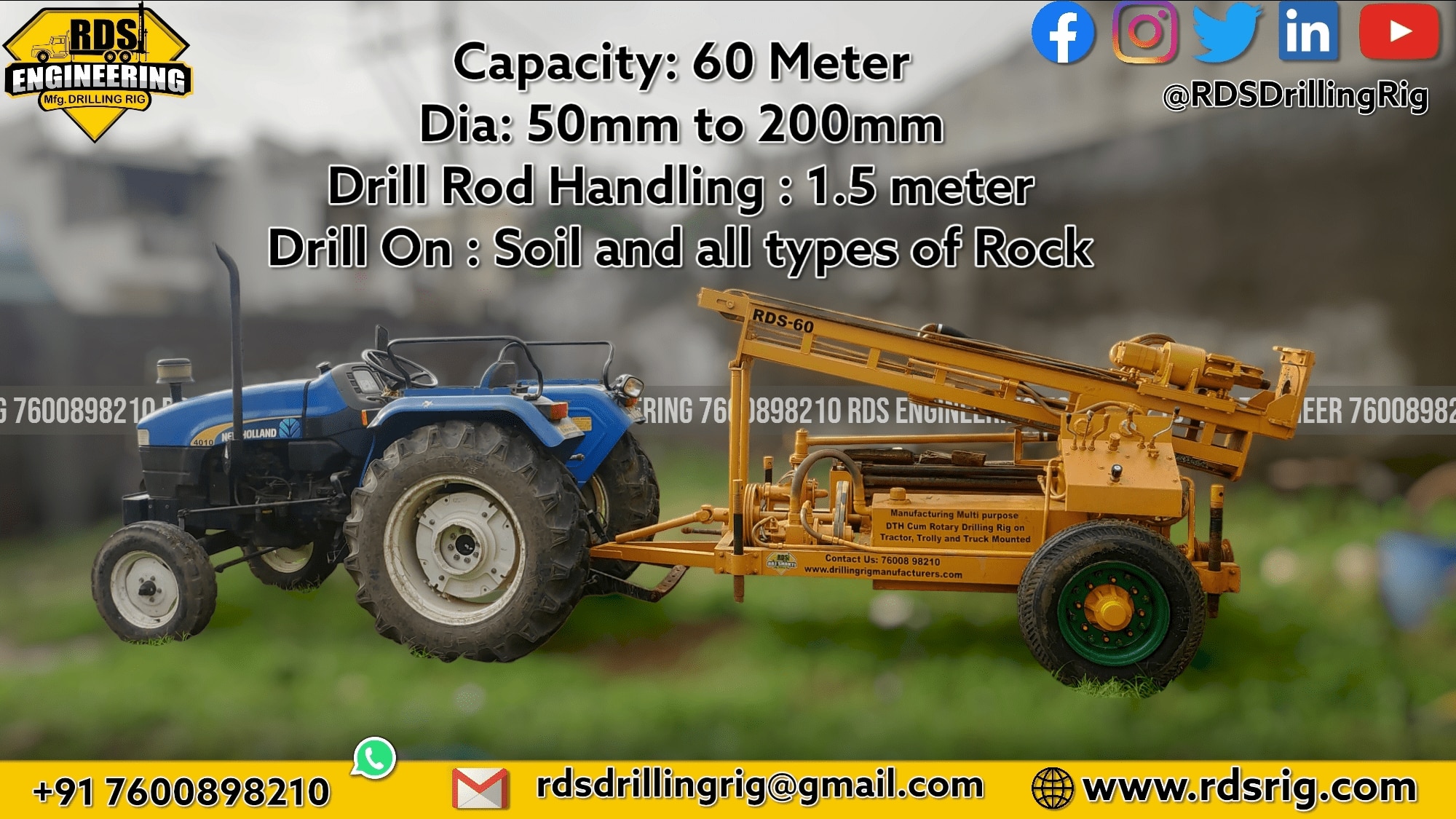

Capacity: Maximum Depth: 60 Meters (Soil and Rock)

Hole Diameter: 50mm to 200mm

Drilling On: Any Type of Soil, All Types of Hard rocks Like iron, granite, quartzite, bolder, etc.

Power By: Tractor PTO Shaft

Transmission: 5 forward gears 1 reverse gear (5F+1R) Vertical gearbox

Rotary Head (PTO): Rotation By Hydraulic 315 Motor, variable speed: 50 to 600 RPM, Max Torque: 200 Nm

Water swivel: Stainless steel, Hard Chrome Shaft

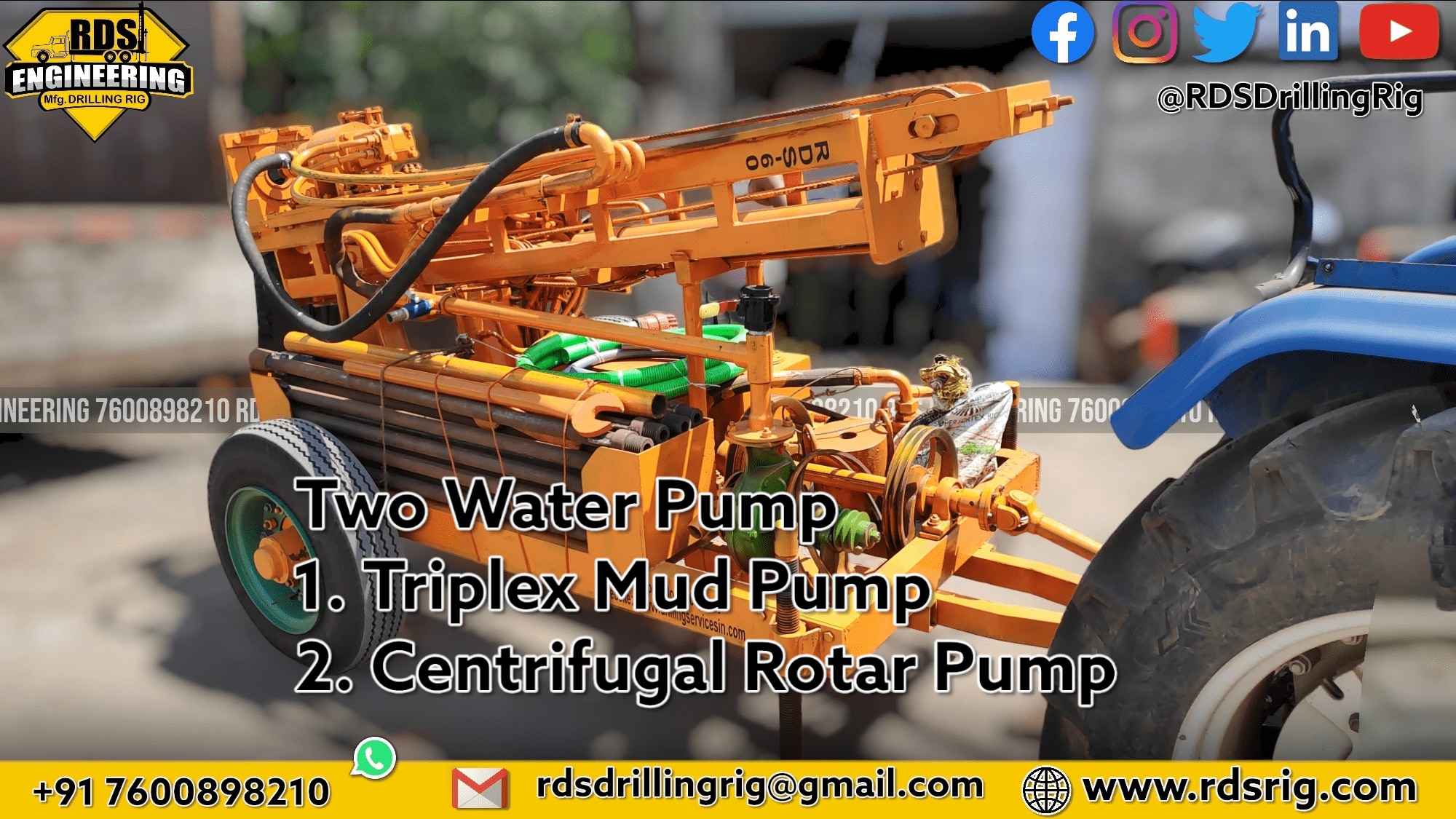

Water pump: Centrifugal Pump: 2.5" x 3" flow; Triplex high-pressure piston mud pump: 80–150 LPM (Optional)

Hydraulic (6-month warranty)

Feed: 1 Hydraulic Cylinder with auto-feed function

Feed Force and Speed: Pull Up: 5500 kg/2000 psi, and Pull Up: 15 Meters/minute

Pull Down: 3500kg; Pull Down: 19 Meters/minute

Mast: 2 Hydraulic Cylinders

Leveling: 4 Hydraulic cylinders; proper levelling drill points with a separate lever; Manual 4-screw jack (Optional)

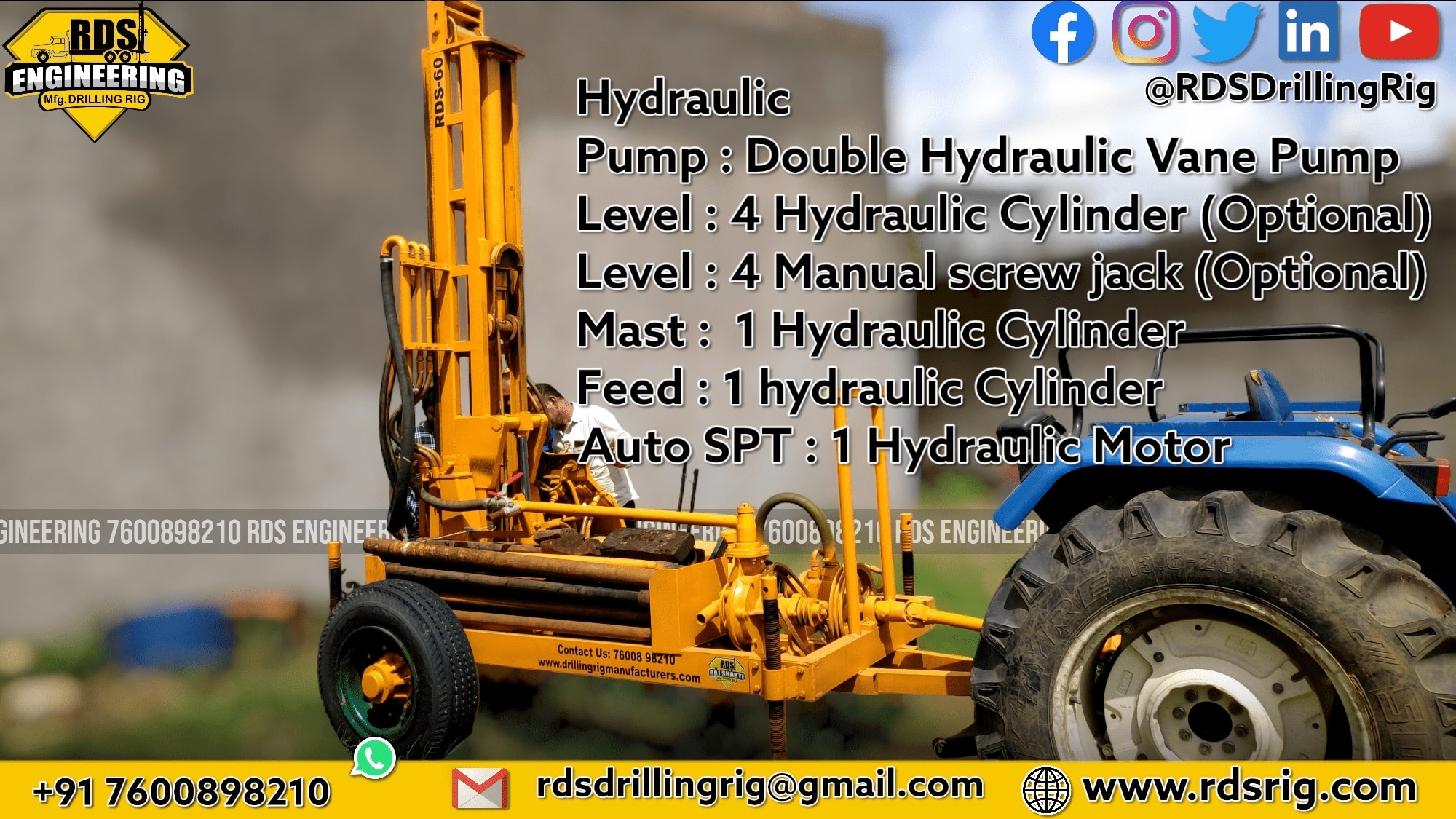

Hydraulic Pump: Double Hydraulic Vane Pump

Tank capacity: Hydraulic oil, 100 Liters

Hydraulic Motor: 315 Hydraulic Motor with wire rope winch pully for SPT

Control Box: Hydraulic Control valve with a separate microlever operational Easy to operate

Structure, Safety and Extra Accessories

Chassis: ISI Heavy 5” C-Channel Structure Proper balanced

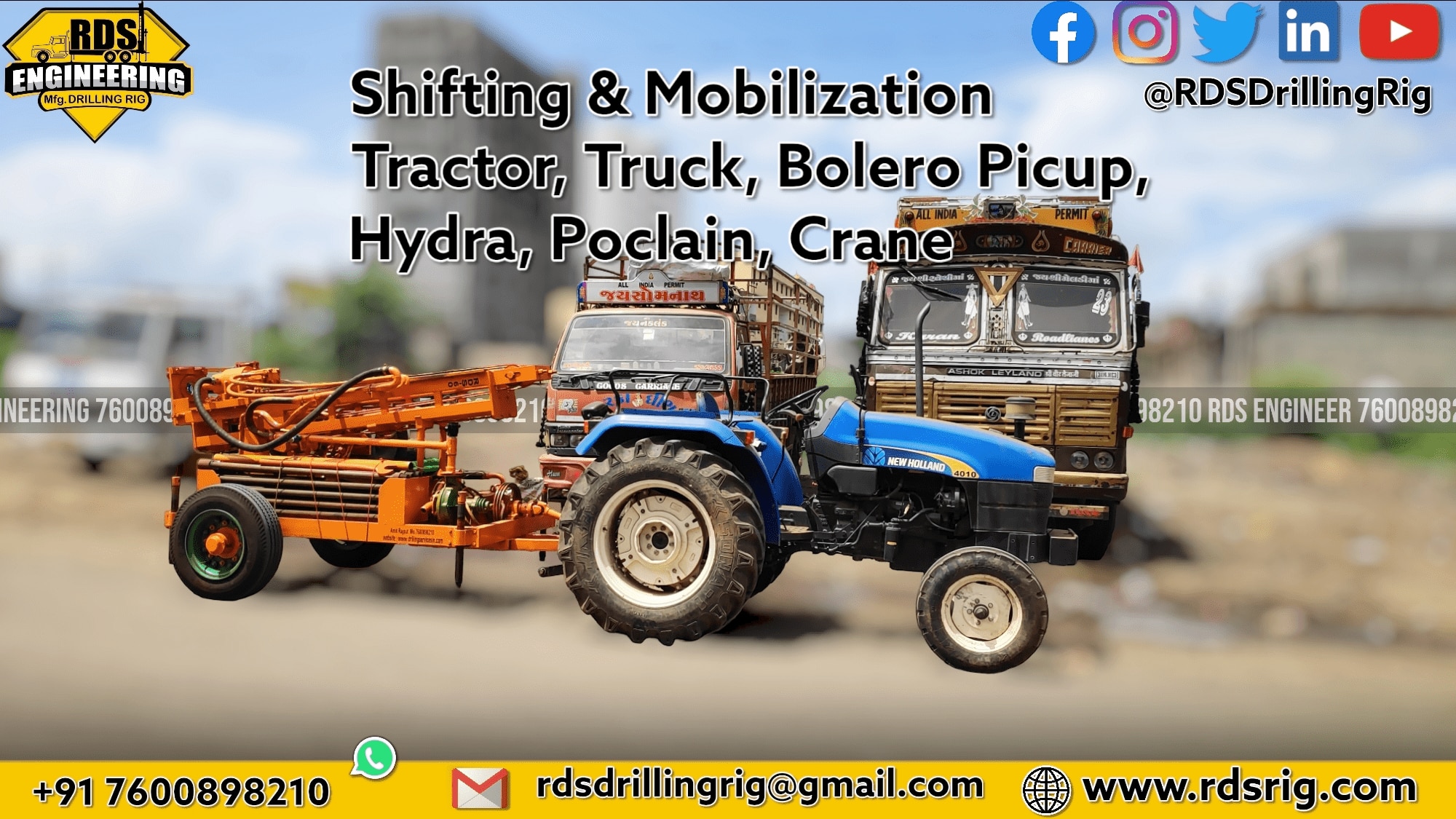

Mounting: Trolley mounting with two MRF tyres

Mast: 8-foot-long channel structure with ISI Heavy 2” C channel Box type; Drill Rod Handling: Rod Handling 5 feet 1.5 meters

Diesel tank: 40 Liters

Safety: TPI Approve All part Safety Cover All Rotating parts safety grill

Additional accessories:

Night Lights, Tools Box, Drill Rod stand, 36, 24 pipe wrench, Wire Rope

Pana Set, foot valve, section pipe, Return and steel valve,

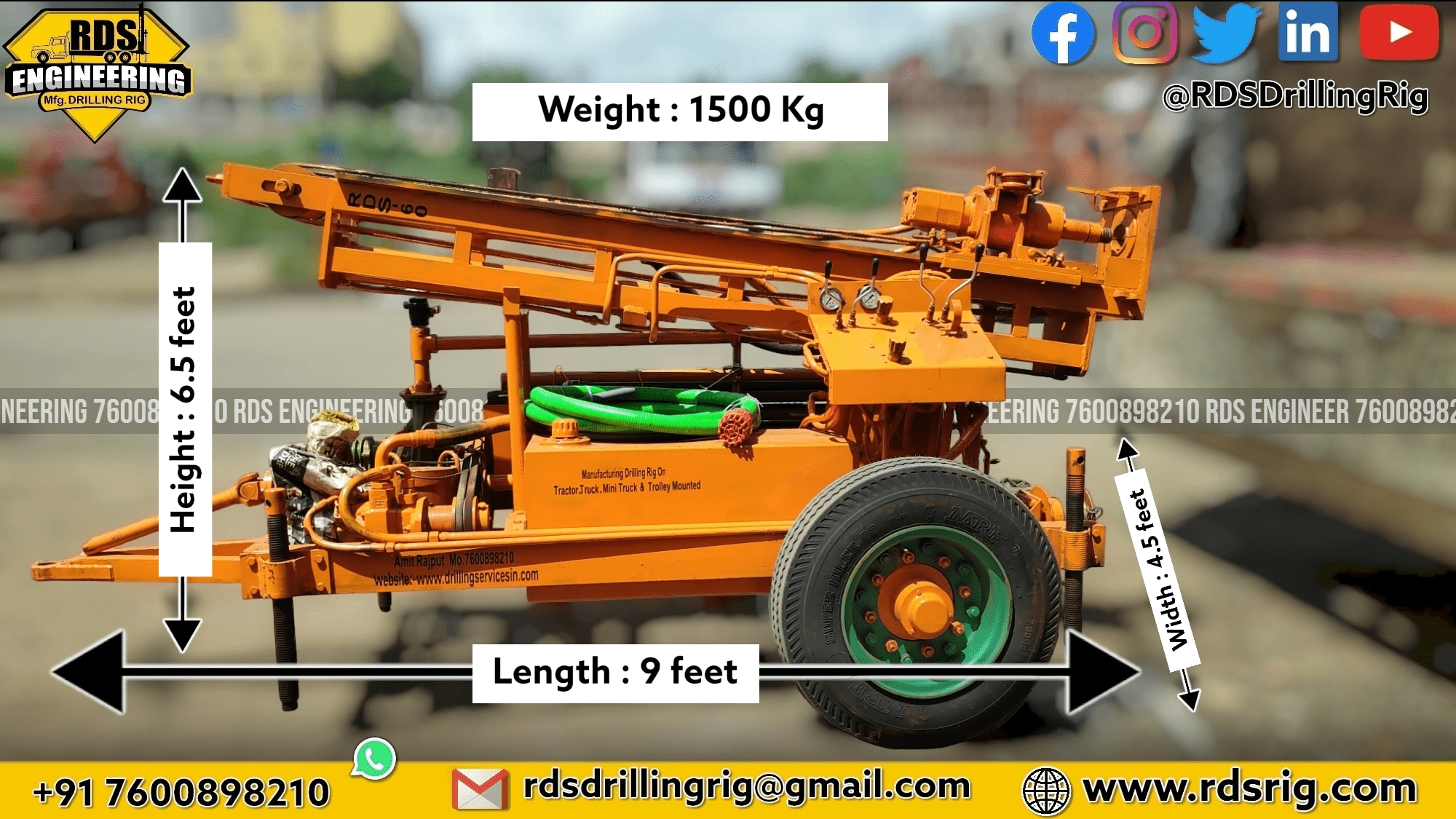

Rig Dimension and Weight

Length: 9 feet

Width: 4.5 feet

Height: 6.5 feet

Weight: 1500 Kg

Geotechnical Testing Equipment as per ISO 22476-3:2005

SPT Semi-Auto Hydraulic Motor with wire rope winch pully for SPT

SPT Assembly: SPT Sampler, SPT tube, SPT shoe

SPT Anvil Connection: AW / Customize

U.D.S. Tube (Shelby Tube):

Dimension Size: OD-73mm, ID-69mm, Length-600mm

Dimension Size: OD-106mm, ID-100mm, Length-500mm

Core Drilling Mining Equipment

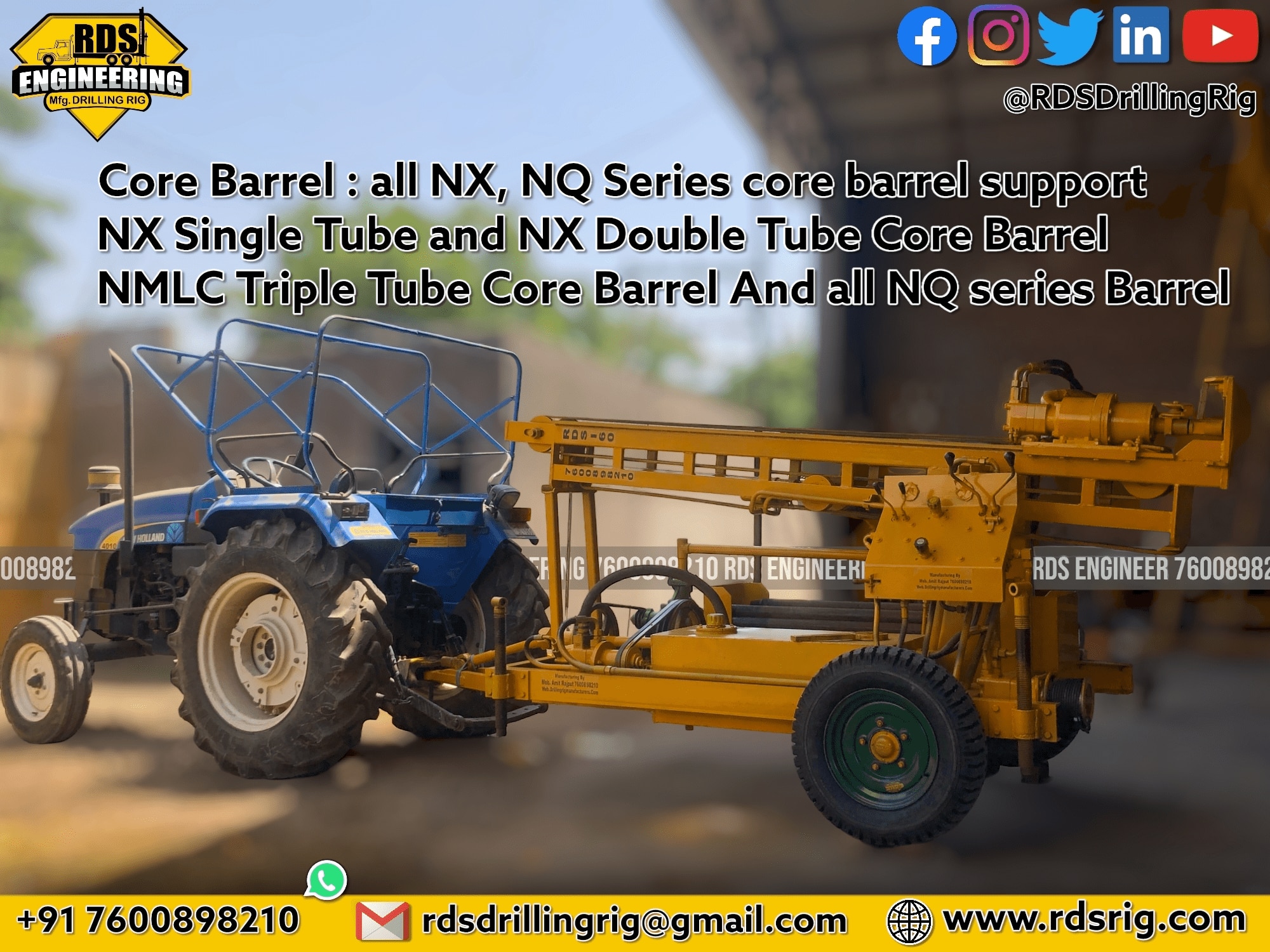

Core Barrel Support: Ax, Bx, Nx, AQ, BQ, NQ, NMLC Series Support

Single, Double, and Triple Tube Core Barrel Support

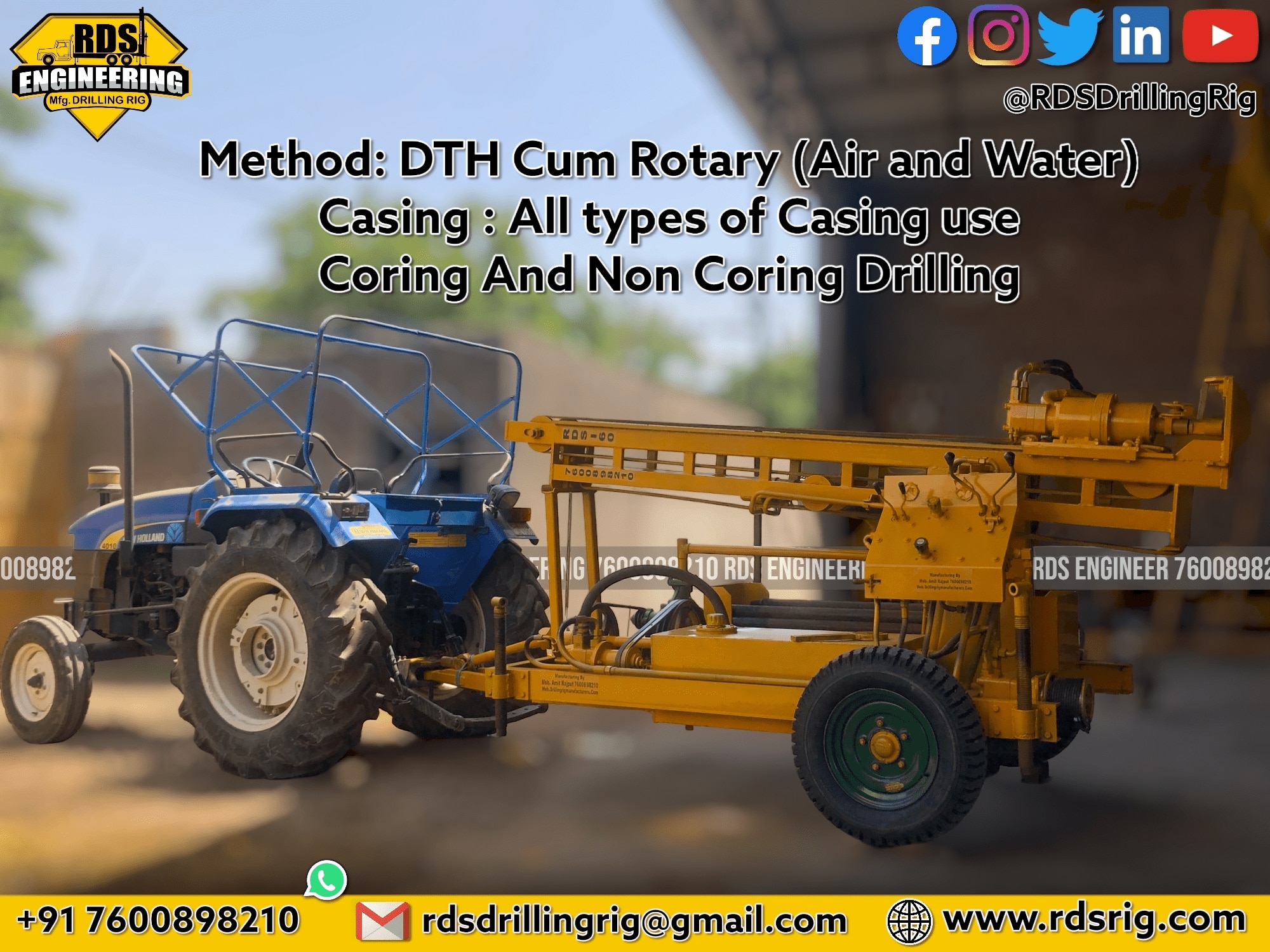

Casing Support: Ax, Bx, and Nx Casing Support

Drill Rod: Aw, Bw, Nw, Nq All Types of Drill Rod Support

RDS API Drill Rod: Special design for RDS-60

RDS API Drill Rod: Carbon steel seamless pipe, 60mm OD, 50mm ID, 5mm thickness, Weight 15 kg

RDS API Drill Rod Adapter: En39 material Adapter With harness tampering, CNC Threading and 12 shaping parts
