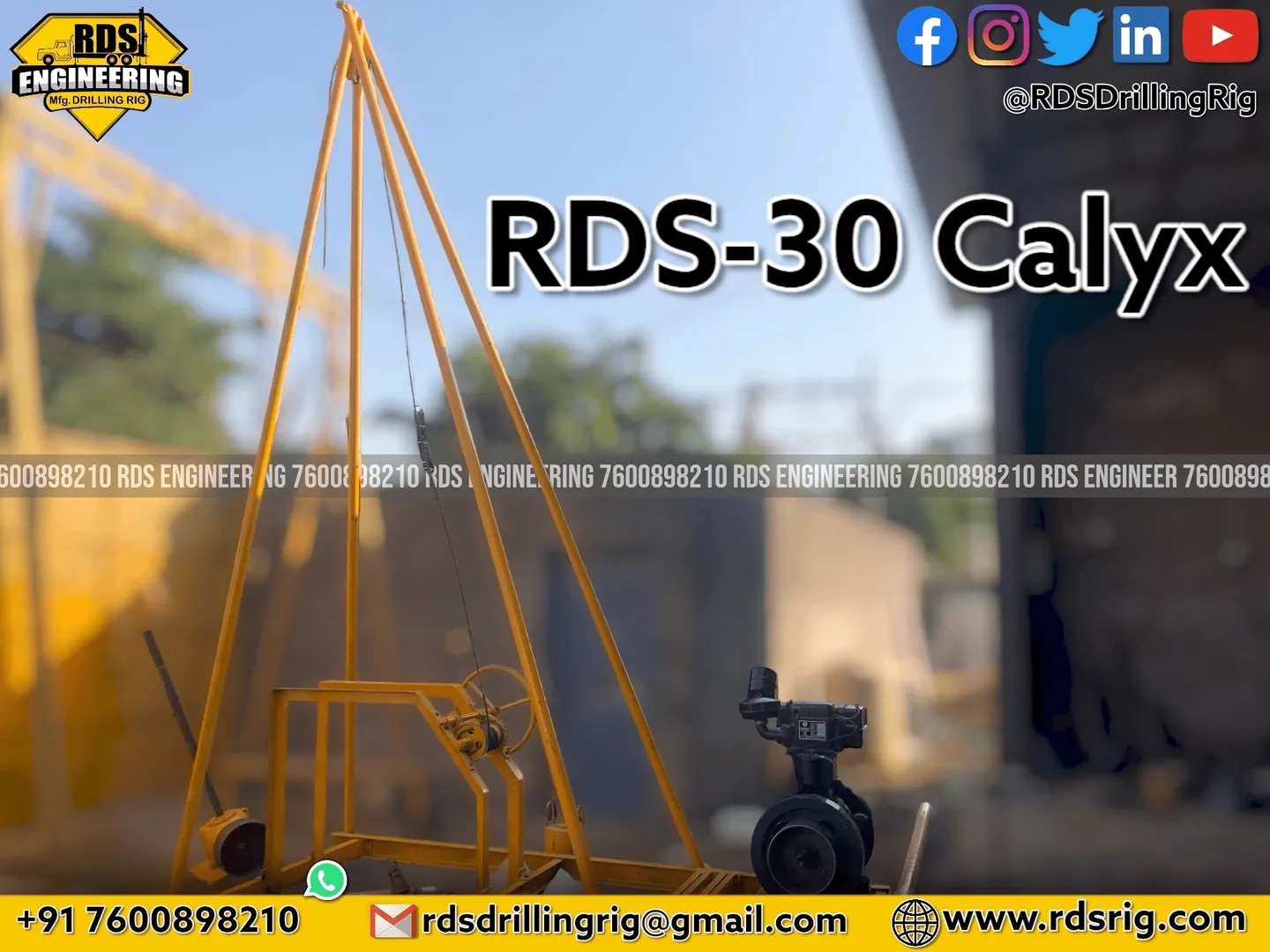

RDS-30 Calyx Portable Drilling Rig

Model: RDS-30 Calyx Portable Drilling Rig

Application Use: Geotechnical, Mining Core Drilling

Capacity: Maximum Depth: 30 Meters (Soil and Rock), Hole Diameter: 50mm to 150mm

Drilling On: any Type of soil, soft rock

Power By: 10 Hp Diesel Engine water cooling

Transmission: Vertical gearbox

Rotary Head (PTO): Rotation By Gearbox Thru

variable speed: 50 to 400 RPM

Max Torque: 100 Nm

Water swivel: Stainless steel, Hard Chrome Shaft

Water pump: Centrifugal Pump: 2.5" x 3" Flow

Triplex high-pressure piston mud pump: 80 LPM (Optional)

Structure and Extra Accessories

Chassis: ISI Heavy 5” C-Channel Structure Proper balanced

Tripod: 20-foot-long, four pipes

Drill Rod Handling: Rod Handling 5 feet, 1.5 meters

Diesel tank: 10 Liters

Additional accessories

36, 24 pipe wrench, Wire Rope

Pana Set, foot valve, section pipe, Return and steel valve

Rig Dimension and Weight

Length: 10 feet

Width: 5 feet

Height: 5 feet

Weight: 1000 Kg

Geotechnical Testing Equipment as per ISO 22476-3:2005

SPT Manual: Manual wire rope winch pully for SPT

SPT Assembly: SPT Sampler, SPT tube, SPT shoe

SPT Anvil Connection: AW / Customize

U.D.S. Tube (Shelby Tube):

Dimension Size: OD-73mm, ID-69mm, Length-600mm

Dimension Size: OD-106mm, ID-100mm, Length-500mm

Core Drilling Mining Equipment

Core Barrel Support:

Ax, Bx, NXR, AQ, and BQ Series Support

Single, Double Tube Core Barrel Support

Casing Support: Ax, Bx, and Nx Casing Support

Drill Rod: Aw, Bw, and Nw Drill Rod Support
