Auto SPT Hammer RDS Engineering Manufacturing Standard Penetration Test (SPT) drop hammer that is hydraulically powered and entirely automated. The hammer produces a reliable and precise blow count using a 140 lbs driving force (slug) dropped from 76 cm, 760mm Adjustable. Both a swing-arm mounted variant and a solo winch line device are offered for the hammer. Both designs may be used for practically any equipment. Compared to conventional manual SPT procedures, the fully enclosed, hydraulic motor powered hammer is far safer. The straightforward, durable design minimises maintenance while maintaining great efficiency. For all RDS rig variants as well as typical rival equipment, we provide mounting and hydraulic connection kits. According to ISO 22476-3:2005, the RDS automated SPT hammer delivers exceptionally reliable and accurate Standard Penetration Test results. There are no wires or ropes to obstruct the weight's free fall, and a viewing hole enables you to confirm the 30 inch fall height. All moving parts, including the region that is likely to be hit by the weight or anvil, are also encased for safety. RDS Engineering installs more than 80 Auto SPT Drilling Rigs. Geotechnical Testing Equipment as per ISO 22476-3:2005 RDS Auto SPT Hammer Technical Specifications Hammer drop height: 760mm, 76cm, 30 inches, Hammer piston weight: 63.5 Kg, 140 lbs Blow per minute: 10-30 Adjustable System Energy test ratio (ETR): 67% - 80% Adjustable System SPT Assembly: SPT Sampler, SPT tube, SPT shoe SPT Anvil Connection: AW / Customize SPT Automatic Hammer Benefits 1. Easy to Upgrade Your Existing Rig 2. Tests with high reliability and accuracy (63.5 kg x 760mm drop) (140 lbs. x 30" drop) 3. Safety: the hammer's casing contains all of the working parts. 4. Can be applied to the majority of rigs (geotechnical, rotary, diamond core rig) 5. Accuracy results in N-value and SPT test, SBC Test Easy to Set Up The SPT (Standard Penetration Test) Hammer assembly is kept to the right of the drill frame and secured in place for travel. The Hammer must be raised using a hydraulic cylinder or hoist and placed above the drill rod in order to work. The Hammer case is lowered into the driving position so that it may be rapidly positioned above the borehole. Simple to Use The Hammer's design is straightforward, and a single operator can operate it successfully. Insofar as their performance doesn't depend on operator-controlled adjustments or monitoring, RDS SPT Hammers are totally automated. The weight of the slug is raised hydraulically via a continuous chain; Due to the Hammer case's ability to "float" in the self-compensating rack or on the hydraulic cylinder, the sampling procedure may be followed regardless of the material density. For better safety, the hitting surface is kept totally enclosed. The normal penetration test is carried out by the RDS Self-Compensating SPT Hammer without adding any extra weight or pressure to the drill string. This eliminates the possibility of retroactive loads or forces being applied to the drill string each time the mechanism cycles. FAQ Terms & Conditions of Ordering: Quality warranty: Our products are made of high-quality steel and all spare parts are inspected strictly before shipping. We have quickly responded to your complaint and suggestion. Production time: Generally need 15 days Transportation: By air, By Express or by sea according to your requests. 1. Methods of Payment: RTGST, NEFT, IMPS, CASH, Online 2. Handling time for an order Based on order quantity, normally it takes 2 days for production. in 3 working days after receiving the advance payment 3. Shipping way Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air Bulk order: we suggest by air or by sea. 4. Quality Control We have our own experienced QC. There will be strict inspection and testing for every order before shipping out. 5. After Services: a. Our sales team will respond to your question within 24 hours (Holidays Excluded) b. Technical Support will be available at any time 6. Quality & Service: A. There will be strict inspection and testing for every order before shipping out. B. Our sales team and Technical Support will respond to your question within 24 hours through WhatsApp at +91 7600898210 C. Free replacement will provide once the failure is confirmed caused or our product quality; Not satisfied with a refund. For more information, please contact: RDS Drilling Rig. WhatsApp: +91 7600898210 Email: rdsdrillingrig@gmail.com Website: https://www.rdsrig.com

What is an Inflatable Packer? They function as a tool to assist in the isolation of boreholes. For high-pressure injection in geotechnical applications, inflatable packers are employed to create leak-proof foundations inside rocks and other unstable terrain. In order to ensure the quality of foundations, they can also be used to test the bedrock. When consolidating grout to make it impermeable and for other consolidation tasks, inflatable packers are used to inject cement into the grout. tested with lugeons as well. RDS Engineering Manufacturing two type packer two variations 1. single packer – used for below packer injection 2. double packer- used for micropile injection Inflated with water, air, or nitrogen. Features of Inflatable Packers: • Available as single-packer or double-packer configurations. • Suitable for TAM Pipe grouting. • Single-packers are easily converted into double-packers. • Inflation Elements can easily be replaceable on site. • Inflation element length can be customized as per requirements. Our patented packers are available for: Inflatable packers come in diameters of 1′′–2′′, 2′′–3′′, 3′′–4′′, 3′′–6′′, 4′′–7′′, and 5′′–8′′. Lengths range from 12′′ to at least five feet. They may expand by two times from their run-in diameter thanks to the sliding head design, and they often provide a longer seal than a mechanical packer. These packers contain built-in tube scrapers that operate each time the packer is deflated and remove extra grout that has clung to the exterior of the centre tube. Choose the right packer Dia 28MM OD Minimum Bore Hole Diameter 35MM Maximum Bore Hole Diameter 50MM Inner Tube Diameter 16MM Connection Port 3/8" BSP Inflation Port M6 x 6OD Dia 32MM OD Minimum Bore Hole Diameter 35MM Maximum Bore Hole Diameter 50MM Inner Tube Diameter 16MM Connection Port 3/8" BSP Inflation Port M6 x 6OD Dia 38MM OD Minimum Bore Hole Diameter 42MM Maximum Bore Hole Diameter 60MM Inner Tube Diameter 20MM Connection Port 1/2" BSP Inflation Port M6 x 6OD Dia 44MM OD Minimum Bore Hole Diameter 50MM Maximum Bore Hole Diameter 80MM Inner Tube Diameter 20MM Connection Port 1/2"BSP Inflation Port 1/8"BSP x 6OD Dia 56MM OD Minimum Bore Hole Diameter 60MM Maximum Bore Hole Diameter 90MM Inner Tube Diameter 27MM Connection Port 3/4"BSP Inflation Port 1/8"BSP x 6OD Dia 74MM OD Minimum Bore Hole Diameter 80MM Maximum Bore Hole Diameter 120MM Inner Tube Diameter 27MM Connection Port 3/4"BSP Inflation Port 1/8"BSP x 6OD Dia 84MM OD Minimum Bore Hole Diameter 90MM Maximum Bore Hole Diameter 130MM Inner Tube Diameter 27MM Connection Port 3/4"BSP Inflation Port 1/8"BSP x 6OD Dia 102MM OD Minimum Bore Hole Diameter 110MM Maximum Bore Hole Diameter 180MM Inner Tube Diameter 35MM Connection Port 1"BSP Inflation Port 1/8"BSP x 6OD Dia 130MM OD Minimum Bore Hole Diameter 140MM Maximum Bore Hole Diameter 230MM Inner Tube Diameter 35MM Connection Port 1"BSP Inflation Port 1/8"BSP x 6OD Dia 170MM OD Minimum Bore Hole Diameter 180MM Maximum Bore Hole Diameter 320MM Inner Tube Diameter 35MM Connection Port 1"BSP Inflation Port 1/8"BSP x 6OD We utilise an equipment called a packer to isolate boreholes. For various sectors, like tunnelling, mining, the oil and gas industry, etc., borehole isolation is essential and advantageous. They aid in isolating the annulus in the oil and gas industry between the tubing/casing and the production well. They provide corrosion protection for the tubing and casing. They assist us with well completion operations including cementing, fracturing, and acidizing. They are used for hydraulic fracturing in the mining industry. They are used for evaluating permeability. They are employed in solution mining. Pressurised cement grouting is used in tunnelling. The TAM Grouting. FAQ Terms and Conditions of Ordering: Quality warranty: Our products are made of high-quality steel, and all spare parts are inspected strictly before shipping. We have quickly responded to your complaint and suggestion. Production time: Generally, you need 2 days Transportation: By air, By express, or by sea, according to your requests. 1. Methods of Payment: RTGST, NEFT, IMPS, CASH, Online 2. Handling time for an order Based on order quantity, it normally takes 2 days for production. in 3 working days after receiving the advance payment 3. Shipping way Sample order: we suggest Courier express like DHL, UPS, TNT/FEDEX or by air Bulk order: we suggest by air or by sea. 4. Quality Control We have our own experienced QC. There will be strict inspection and testing for every order before shipping out. 5. After Services: a. Our sales team will respond to your question within 24 hours (Holidays Excluded) b. Technical Support will be available in any time 6. Quality and Service: A. There will be strict inspection and testing for every order before shipping out. B. Our sales team and Technical Support will respond to your question within 24 hours through WhatsApp +91 7600898210 C. A free replacement will be provided once the failure is confirmed to be caused by our product quality or if you are not satisfied with a refund. For more information, please contact: RDS Drilling Rig WhatsApp: +91 7600898210 Email: rdsdrillingrig@gmail.com

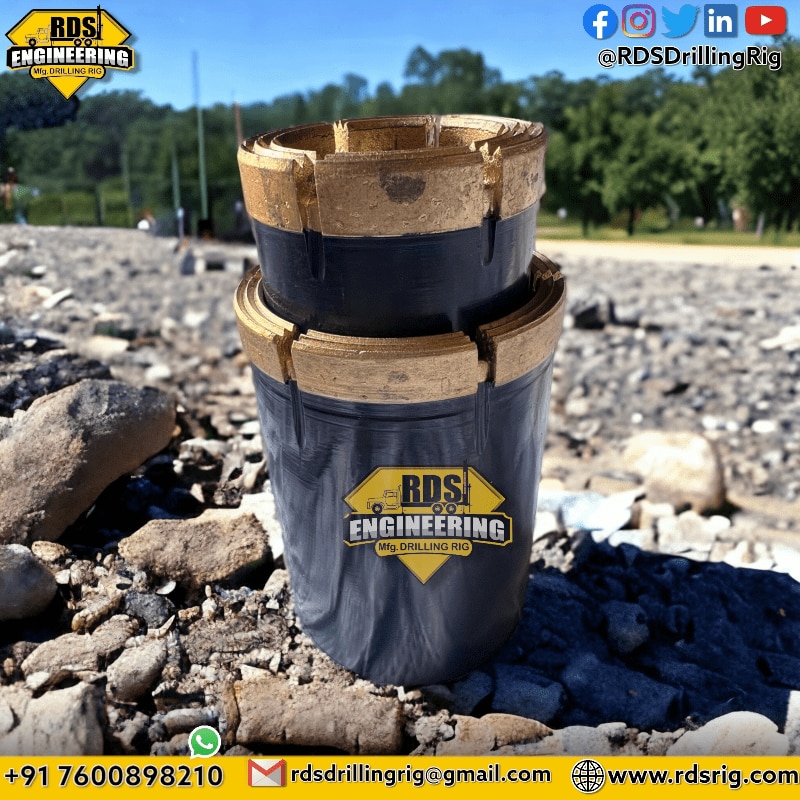

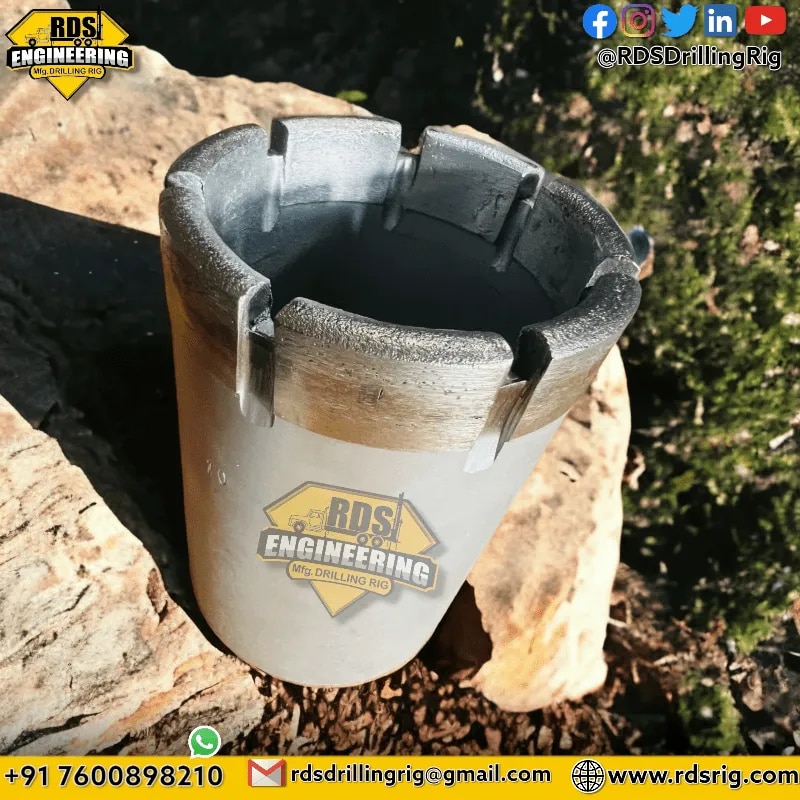

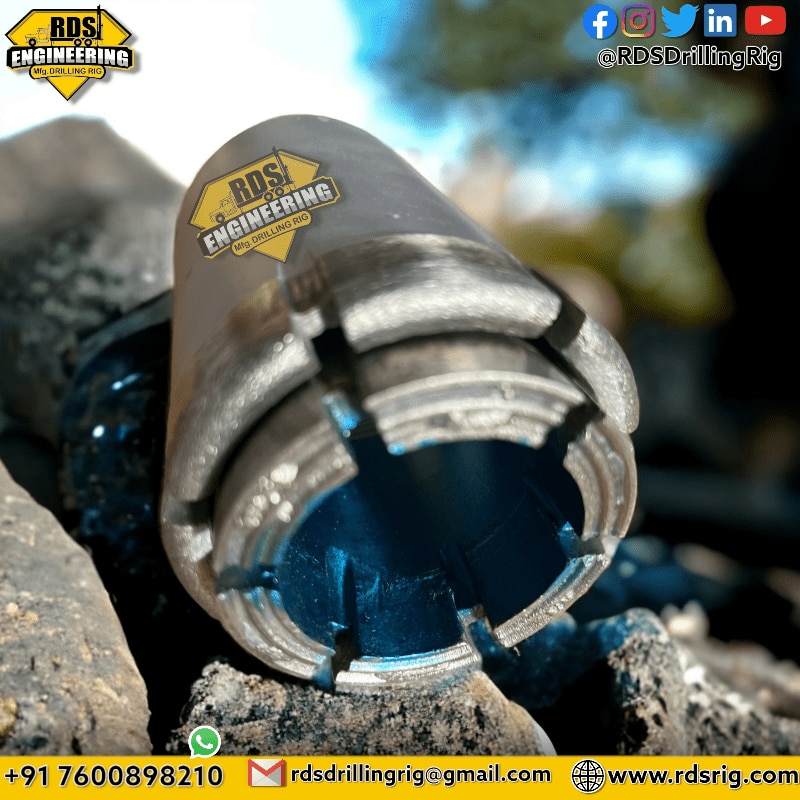

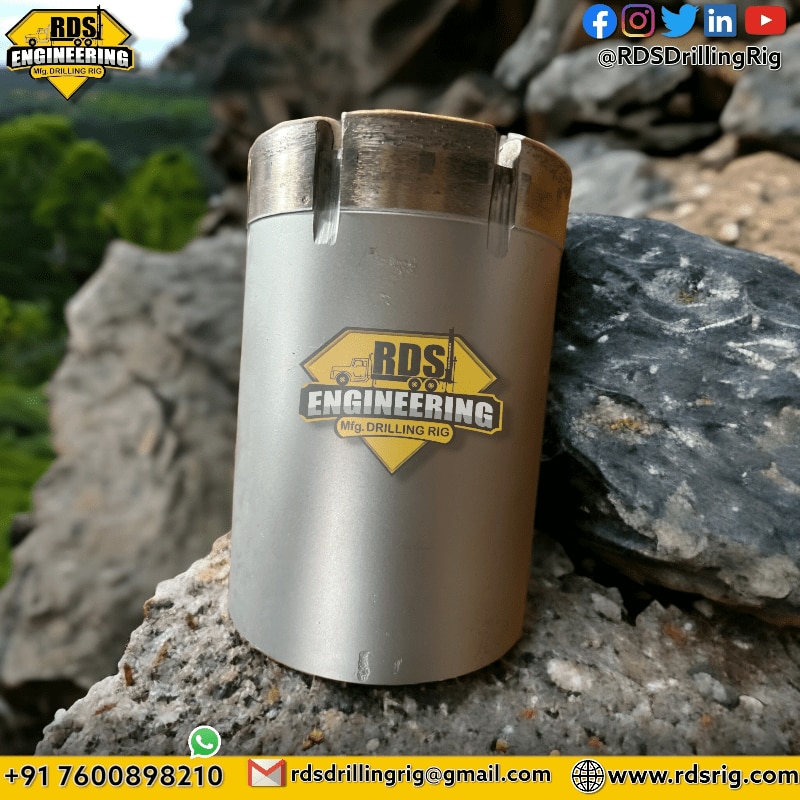

Nx diamond casing shoe bit The diameter of these bits is smaller than that of casing shoes, preventing the core barrels from passing through. Nx Diamond casing shoe bits are made to open the hole, drill it down normally, and place standard casing tubes of various diameters in specific drill holes. While diamond rod shoe bits and casing shoe bits are extremely similar, the thread connections on the former are different, and the latter is mostly used for wireline drilling rods. Diamond-coated casing shoe bits: The inner sides of the casing shoe bits are flush with the casing's inner diameter and are NOT set with diamonds. Corresponding-sized core bits and core barrels can readily pass through the casing shoe bits' inner diameter. The diamond grits are used to create a diamond casing, as well as casing shoe pieces. The bit's core and matrix both include these diamond grits, which are attached by a powdered metal bond. For opening holes, surface-set diamond casing and casing shoe bits are manufactured. Natural diamonds are put on the bit crown to create a surface set diamond casing and casing shoe bits. RDS Engineering Manufacturing Impregnated Nx diamond casing shoe bits for Core Drilling, Tunnel Drilling, Geotechnical Investigation, Soil Testing, Drainage, and Grouting of Holes, among other uses. FAQ Terms and Conditions of Ordering: Quality warranty: Our products are made of high-quality steel, and all spare parts are inspected strictly before shipping. We have quickly responded to your complaint and suggestion. Production time: Generally, you need 2 days Transportation: By air, By express, or by sea, according to your requests. 1. Methods of Payment: RTGST, NEFT, IMPS, CASH, Online 2. Handling time for an order Based on order quantity, it normally takes 2 days for production. in 3 working days after receiving the advance payment 3. Shipping way Sample order: we suggest Courier express like DHL, UPS, TNT/FEDEX or by air Bulk order: we suggest by air or by sea. 4. Quality Control We have our own experienced QC. There will be strict inspection and testing for every order before shipping out. 5. After Services: a. Our sales team will respond to your question within 24 hours (Holidays Excluded) b. Technical Support will be available in any time 6. Quality and Service: A. There will be strict inspection and testing for every order before shipping out. B. Our sales team and Technical Support will respond to your question within 24 hours through WhatsApp +91 7600898210 C. A free replacement will be provided once the failure is confirmed to be caused by our product quality or if you are not satisfied with a refund. For more information, please contact: RDS Drilling Rig WhatsApp: +91 7600898210 Email: rdsdrillingrig@gmail.com
