inflatable packers for grouting

What is an Inflatable Packer?

They function as a tool to assist in the isolation of boreholes.

For high-pressure injection in geotechnical applications, inflatable packers are employed to create leak-proof foundations inside rocks and other unstable terrain. In order to ensure the quality of foundations, they can also be used to test the bedrock.

When consolidating grout to make it impermeable and for other consolidation tasks, inflatable packers are used to inject cement into the grout. tested with lugeons as well.

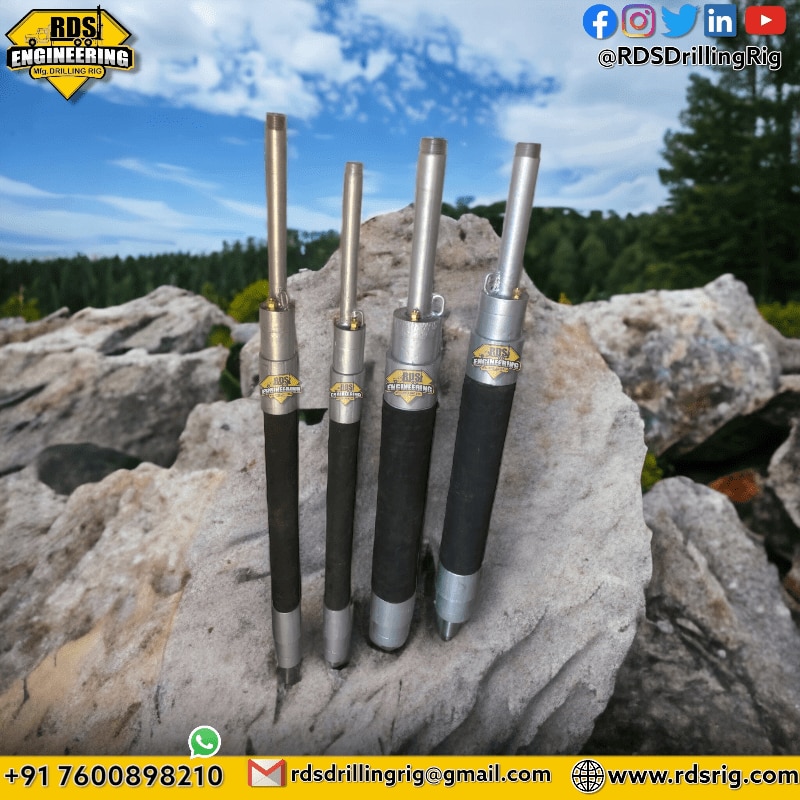

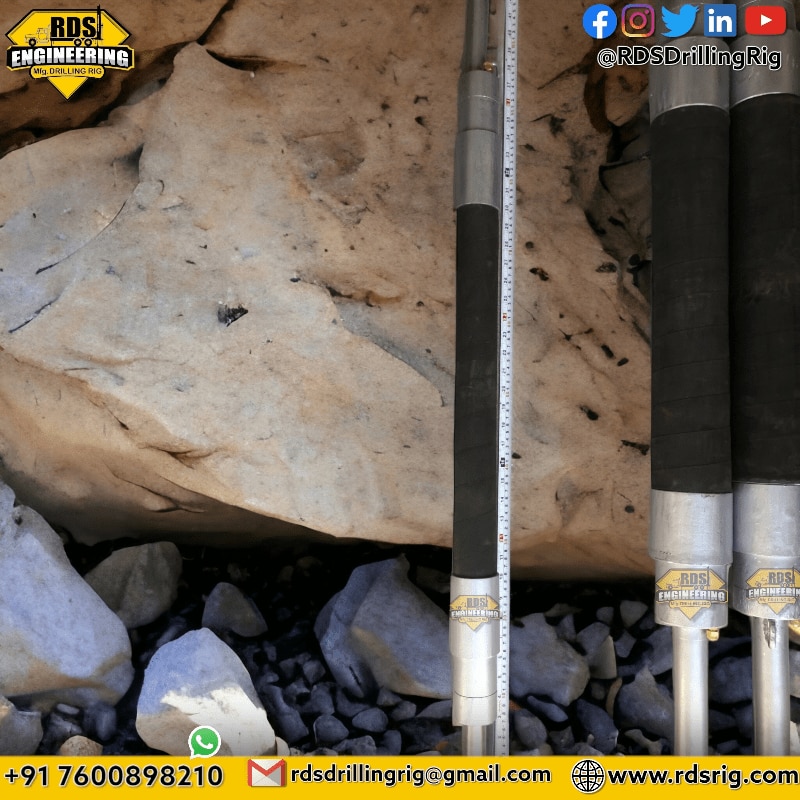

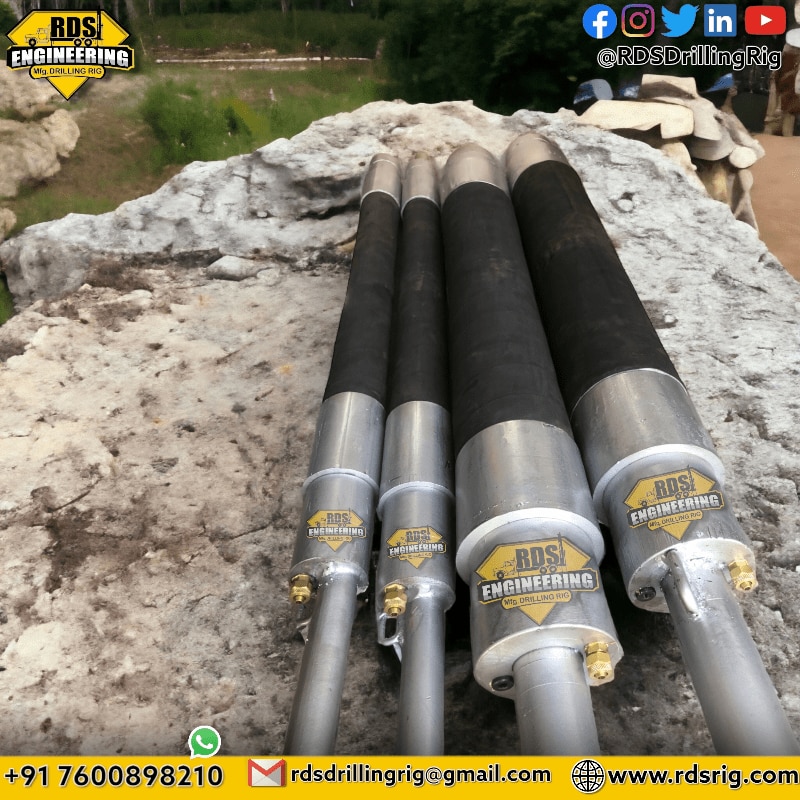

RDS Engineering Manufacturing two type packer

two variations

1. single packer – used for below packer injection

2. double packer- used for micropile injection

Inflated with water, air, or nitrogen.

Features of Inflatable Packers:

• Available as single-packer or double-packer configurations.

• Suitable for TAM Pipe grouting.

• Single-packers are easily converted into double-packers.

• Inflation Elements can easily be replaceable on site.

• Inflation element length can be customized as per requirements.

Our patented packers are available for:

Inflatable packers come in diameters of 1′′–2′′, 2′′–3′′, 3′′–4′′, 3′′–6′′, 4′′–7′′, and 5′′–8′′. Lengths range from 12′′ to at least five feet. They may expand by two times from their run-in diameter thanks to the sliding head design, and they often provide a longer seal than a mechanical packer. These packers contain built-in tube scrapers that operate each time the packer is deflated and remove extra grout that has clung to the exterior of the centre tube.

Choose the right packer

Dia 28MM OD

Minimum Bore Hole Diameter 35MM

Maximum Bore Hole Diameter 50MM

Inner Tube Diameter 16MM

Connection Port 3/8" BSP

Inflation Port M6 x 6OD

Dia 32MM OD

Minimum Bore Hole Diameter 35MM

Maximum Bore Hole Diameter 50MM

Inner Tube Diameter 16MM

Connection Port 3/8" BSP

Inflation Port M6 x 6OD

Dia 38MM OD

Minimum Bore Hole Diameter 42MM

Maximum Bore Hole Diameter 60MM

Inner Tube Diameter 20MM

Connection Port 1/2" BSP

Inflation Port M6 x 6OD

Dia 44MM OD

Minimum Bore Hole Diameter 50MM

Maximum Bore Hole Diameter 80MM

Inner Tube Diameter 20MM

Connection Port 1/2"BSP

Inflation Port 1/8"BSP x 6OD

Dia 56MM OD

Minimum Bore Hole Diameter 60MM

Maximum Bore Hole Diameter 90MM

Inner Tube Diameter 27MM

Connection Port 3/4"BSP

Inflation Port 1/8"BSP x 6OD

Dia 74MM OD

Minimum Bore Hole Diameter 80MM

Maximum Bore Hole Diameter 120MM

Inner Tube Diameter 27MM

Connection Port 3/4"BSP

Inflation Port 1/8"BSP x 6OD

Dia 84MM OD

Minimum Bore Hole Diameter 90MM

Maximum Bore Hole Diameter 130MM

Inner Tube Diameter 27MM

Connection Port 3/4"BSP

Inflation Port 1/8"BSP x 6OD

Dia 102MM OD

Minimum Bore Hole Diameter 110MM

Maximum Bore Hole Diameter 180MM

Inner Tube Diameter 35MM

Connection Port 1"BSP

Inflation Port 1/8"BSP x 6OD

Dia 130MM OD

Minimum Bore Hole Diameter 140MM

Maximum Bore Hole Diameter 230MM

Inner Tube Diameter 35MM

Connection Port 1"BSP

Inflation Port 1/8"BSP x 6OD

Dia 170MM OD

Minimum Bore Hole Diameter 180MM

Maximum Bore Hole Diameter 320MM

Inner Tube Diameter 35MM

Connection Port 1"BSP

Inflation Port 1/8"BSP x 6OD

We utilise an equipment called a packer to isolate boreholes.

For various sectors, like tunnelling, mining, the oil and gas industry, etc., borehole isolation is essential and advantageous.

They aid in isolating the annulus in the oil and gas industry between the tubing/casing and the production well.

They provide corrosion protection for the tubing and casing.

They assist us with well completion operations including cementing, fracturing, and acidizing.

They are used for hydraulic fracturing in the mining industry.

They are used for evaluating permeability.

They are employed in solution mining.

Pressurised cement grouting is used in tunnelling.

The TAM Grouting.

FAQ

Terms and Conditions of Ordering:

Quality warranty:

Our products are made of high-quality steel, and all spare parts are inspected strictly before shipping. We have quickly responded to your complaint and suggestion.

Production time:

Generally, you need 2 days

Transportation:

By air, By express, or by sea, according to your requests.

1. Methods of Payment:

RTGST, NEFT, IMPS, CASH, Online

2. Handling time for an order

Based on order quantity, it normally takes 2 days for production.

in 3 working days after receiving the advance payment

3. Shipping way

Sample order: we suggest Courier express like DHL, UPS, TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

a. Our sales team will respond to your question within 24 hours (Holidays Excluded)

b. Technical Support will be available in any time

6. Quality and Service:

A. There will be strict inspection and testing for every order before shipping out.

B. Our sales team and Technical Support will respond to your question within 24 hours through WhatsApp +91 7600898210

C. A free replacement will be provided once the failure is confirmed to be caused by our product quality or if you are not satisfied with a refund.
