RDS-300 Trolley Mounted Rig

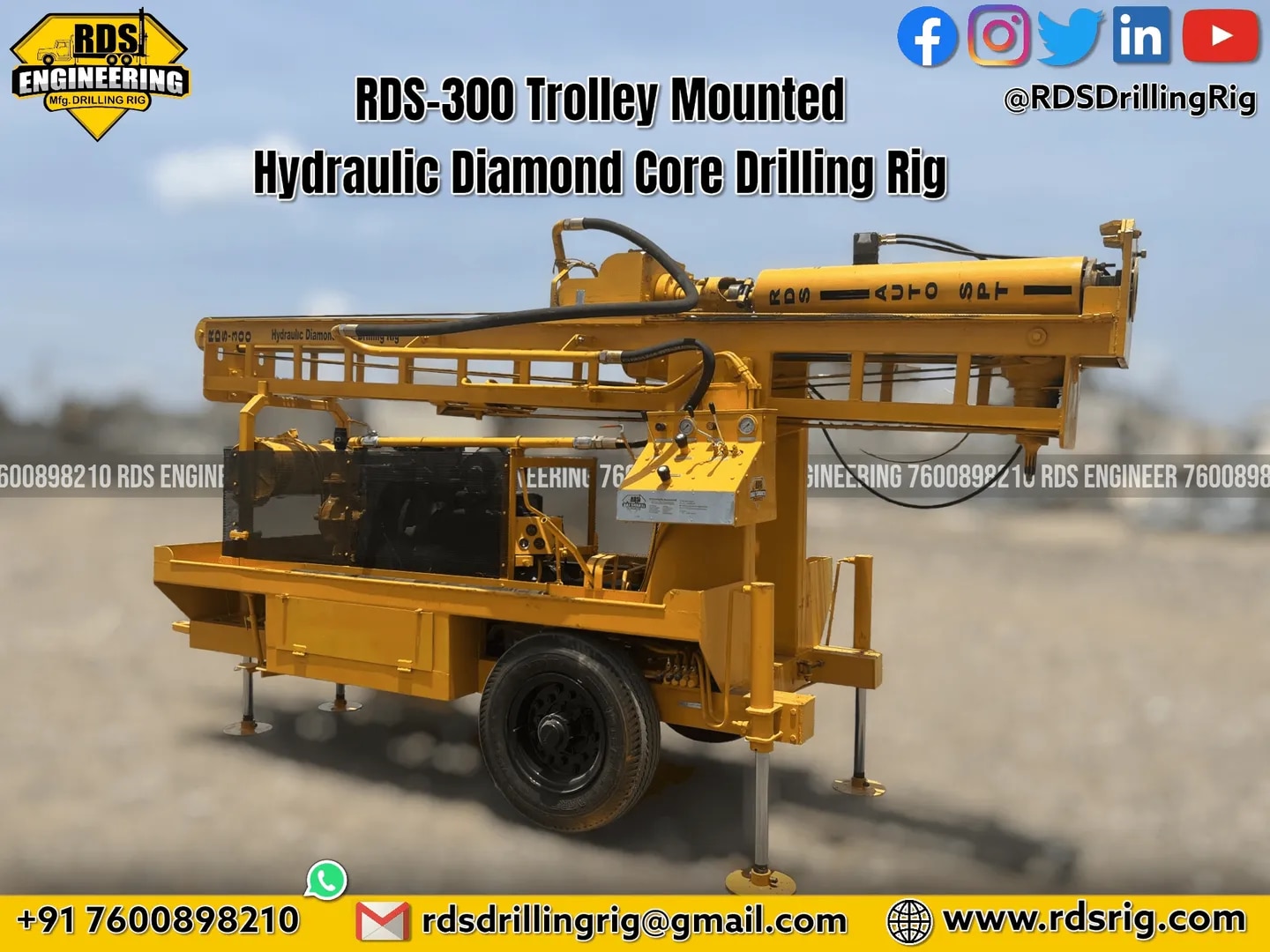

Model: RDS-300 Trolley Mounted Hydraulic Diamond Core Drilling Rig

Application Use: Geotechnical, Mining Core Drilling, Water Wells, and Pilling (Multipurpose)

Maximum Depth: 300 Meters (Soil and Rock) Hole Diameter: 50mm to 400mm

Any Type of soil.

All Types of Hard rocks like iron, granite, quartzite, bolder, etc.

New Tata 709 engine, 4 cylinders, 75 Hp, or reconditioned with a 6-month warranty (Optional)

Transmission: 5 forward gears 1 reverse gear (5F+1R) Vertical gearbox

Rotation By Gearbox Thru

variable speed: 50 to 600 RPM

Max Torque: 400 Nm

Water swivel: Stainless steel, hard chrome plated, replaceable bushing system

Centrifugal Pump: 2.5" x 3" Flow, Triplex high-pressure piston mud pump: 80–200 LPM

Hydraulic (6-month warranty)

Feed: 1 Hydraulic Cylinder with auto-feed function

Pull Up: 7500 kg/3000 psi and Pull Up: 18 Meters/minute

Pull Down: 5500 kg, and Pull Down: 22 Meters/minute

Mast: 2 Hydraulic Cylinders

Hydraulic Cylinder: 4 proper levelling drill points with a separate lever

Manual 4-screw jack (Optional)

Hydraulic Pump: Double Hydraulic Vane Pump

Tank capacity: Hydraulic oil, 120 Liters

Hydraulic Motor: 315 Hydraulic Motor with wire rope winch pully

Control Box: Hydraulic Control valve with a separate microlever operational Easy to operate

Structure, Safety and Extra Accessories

Chassis: ISI Heavy 6” C channel structure Proper balanced

Mounting: Trolley mounting with two MRF tyres

Mast: 14-foot-long channel structure with ISI Heavy 3” C channel Box type; Drill Rod Handling: Rod Handling 10 feet, 3 meters

Diesel tank: 40 Liters

Safety: TPI Approve All part Safety Cover All Rotating parts safety grill

Additional accessories

Night Lights, Tools Box, Drill Rod stand, 36, 24 pipe wrench, Wire Rope

Pana Set, foot valve, section pipe, Return, and steel valve

Rig Dimension and Weight

Length: 18 feet

Width: 4.5 feet

Height: 8 feet

Weight: 3500 Kg

Geotechnical Testing Equipments as per ISO 22476-3:2005

RDS Auto SPT Hammer Technical Specifications

Hammer drop height: 760mm, 76cm

Hammer piston weight: 63.5 Kg

Blow per minute: 10-30 Adjustable System

SPT Assembly: SPT Sampler, SPT tube, SPT shoe

SPT Anvil Connection: AW / Customize

U.D.S. Tube (Shellby Tube):

Dimension Size: OD-73mm, ID-69mm, Length-600mm

Dimension Size: OD-106mm, ID-100mm, Length-500mm

Core Drilling Mining Equipment

Ax, Bx, Nx, Hx, PX, AQ, BQ, NQ, HQ, PQ, NMLC All Series Support

Single, Double, and Triple Tube Core Barrel Support

Casing Support: All Types of Casing Support

Drill Rod: Aw, Bw, Nw, Nq All Types of Drill Rod Support

RDS API Drill Rod Special design for RDS-300

RDS API Drill Rod: Carbon steel seamless pipe, 60mm OD, 50mm ID, 5mm thickness, Weight 25 kg

RDS API Drill Rod Adapter: En39 material Adapter With harness tampering, CNC Threading and 12 shaping parts
