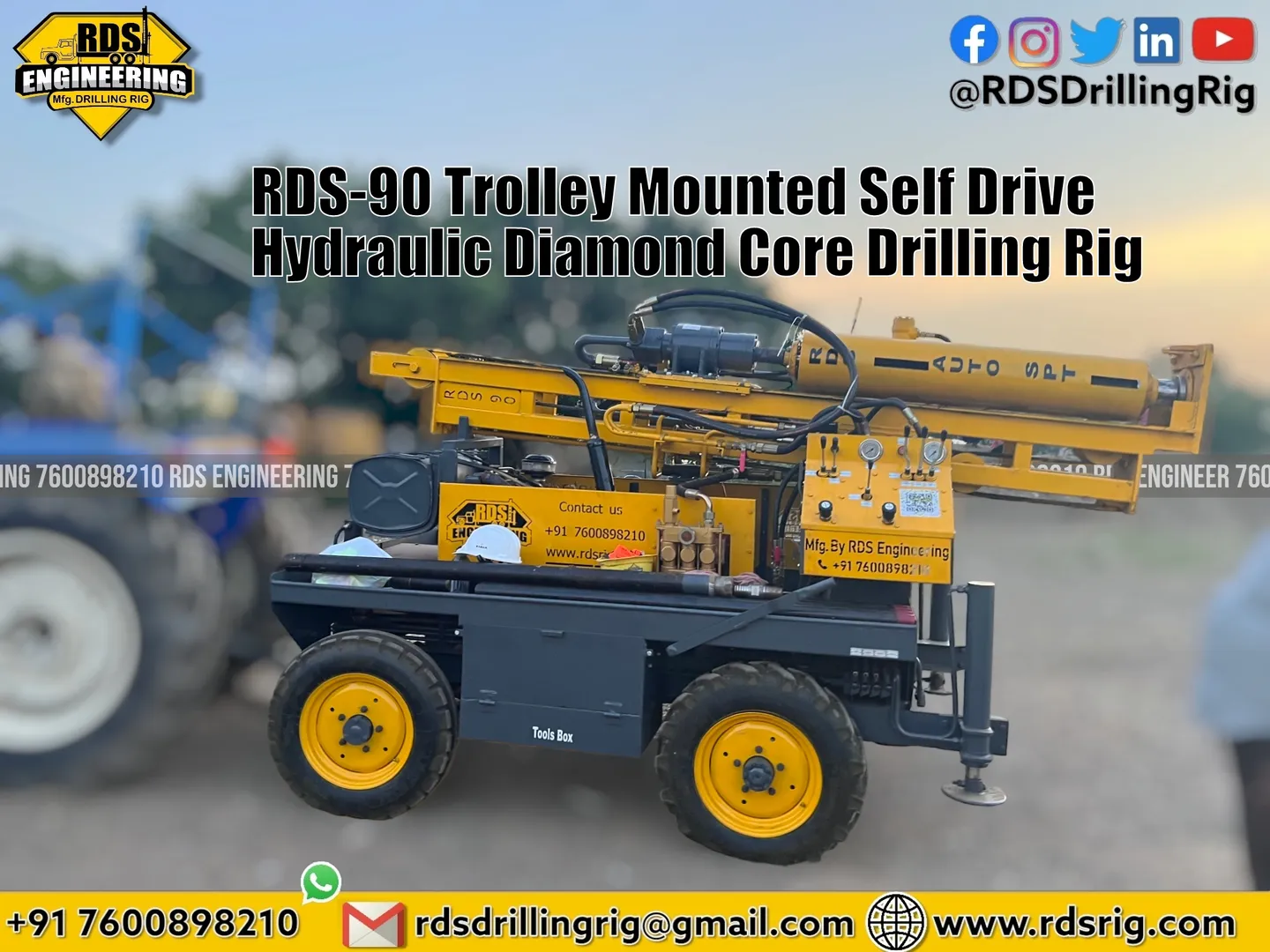

RDS-90 Trolley Mounted Self Drive
Hydraulic Diamond Core Drilling Rig
Application Use: Geotechnical, Mining Core Drilling
Capacity: Maximum Depth: 90 Meters (Soil and Rock)
Hole Diameter: 50mm to 300mm
Drilling On: Any Type of Soil, All Types of Hard rocks Like iron, granite, quartzite, bolder, etc.
Power By: New Tata 407 engine, 3-cylinder engine, Recondition with a 6-month warranty (Optional)
Transmission: 5 forward gears 1 reverse gear (5F+1R) Vertical gearbox
Rotary Head (PTO): Rotation By Gearbox Thore or Rotation by Hydraulic 315 Motor (Optional),
variable speed: 50 to 600 RPM
Max Torque: 300 Nm
Water swivel: Stainless Steel Hard Chrome Shaft or Bush
Water pump: Centrifugal Pump: 2.5" x 3" Flow
Triplex high-pressure piston mud pump: 80–150 LPM (Optional)
Hydraulic (6-month warranty)
Feed: 1 Hydraulic Cylinder with auto-feed function
Feed Force and Speed: Pull Up: 5500 kg/2000 psi, and Pull Up: 15 Meters/minute
Pull Down: 3500kg; Pull Down: 19 Meters/minute
Mast: 2 Hydraulic Cylinders
Leveling: 4 Hydraulic cylinders; proper levelling drill points with a separate lever
Manual 4-screw jack (Optional)
Hydraulic Pump: Double Hydraulic Vane Pump
Tank capacity: Hydraulic oil, 100 Liters
Hydraulic Motor: 315 Hydraulic Motor with wire rope winch pully for SPT
Control Box: Hydraulic Control valve with a separate microlever operational Easy to operate
Structure, Safety and Extra Accessories
Chassis: ISI Heavy 5” C-Channel Structure Proper balanced
Mounting: Trolley mounting with four tyres
Mast: 8-foot-long channel structure with ISI Heavy 2” C channel Box Type
Drill Rod Handling: Rod Handling 5 feet, 1.5 meters
Diesel tank: 40 Liters
Safety: TPI Approve All part Safety Cover All Rotating parts safety grill
Additional accessories
Night Lights, Tools Box, Drill Rod stand, 36, 24 pipe wrench, Wire Rope
Pana Set, foot valve, section pipe, Return and steel valve,
Rig Dimension and Weight
Length: 9 feet
Width: 4.5 feet
Height: 6.5 feet
Weight: 2000 Kg
Geotechnical Testing Equipment as per ISO 22476-3:2005
SPT Semi-Auto Hydraulic Motor with wire rope winch pully for SPT
SPT Assembly: SPT Sampler, SPT tube, SPT shoe
SPT Anvil Connection: AW / Customize
U.D.S. Tube (Shelby Tube):
Dimension Size: OD-73mm, ID-69mm, Length-600mm
Dimension Size: OD-106mm, ID-100mm, Length-500mm
Core Drilling Mining Equipment
Core Barrel Support: Ax, Bx, Nx, AQ, BQ, NQ, NMLC Series Support
Single, Double, and Triple Tube Core Barrel Support
Casing Support: Axe, Bx, and Nx Casing Support
Drill Rod: Aw, Bw, Nw, Nq All Types of Drill Rod Support
RDS API Drill Rod: Special design for RDS-90
RDS API Drill Rod: Carbon steel seamless pipe, 60mm OD, 50mm ID, 5mm thickness, Weight 15 kg
RDS API Drill Rod Adapter: En39 material Adapter With harness tampering, CNC Threading and 12 shaping parts
