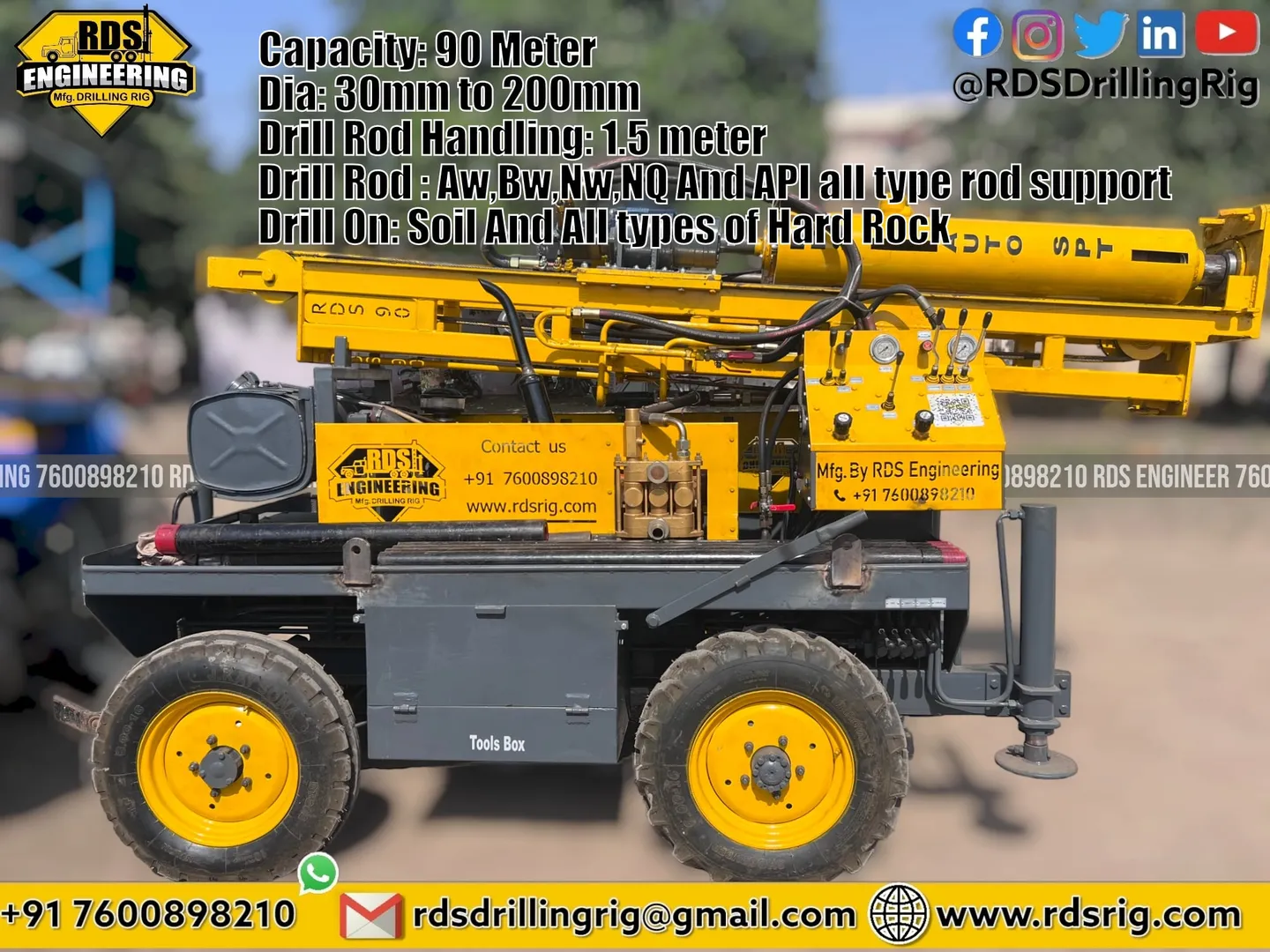

Best Geo tech Drilling Rig RDS-90 Trolley Mounted...

Best Geo tech Drilling Rig

RDS-90 Trolley Mounted Self Drive
Hydraulic Diamond Core Drilling Rig

Shifting & Mobilization
Self Drive, Tractor, Truck, Bolero Picup, Hydra, Poclain, Crane


Capacity: 90 Meter
Dia: 50mm to 200mm
Drill Rod Handling: 1.5 meter
Drill Rod : Aw, Bw, Nw, NQ And API all type rod support
Drill On: Soil And All types of Hard Rock


Hydraulic
Hydraulic Pump: Double Hydraulic Vane Pump
Feed: 1 Hydraulic Cylinders
Mast: 1 Hydraulic Cylinders
Leveling: 3 Hydraulic cylinders
Tank capacity: Hydraulic oil, 100 Liters

Two Water Pump
1. Triplex Mud Pump
2. Centrifugl Rotar Pump

Method: Rotary Drilling
Casing: All type of Casing can Drill
Coring And Non Coring Drilling

Power
Power By: New Tata 407 engine, 3-cylinder engine
variable speed: 50 to 600 RPM
Rotary Head (PTO): Rotation By Gearbox Thore or Rotation by Hydraulic Motor

Capacity: Maximum Depth: 90 Meters (Soil and Rock)
Hole Diameter: 50mm to 300mm
Drilling On: Any Type of Soil, All Types of Hard rocks Like iron, granite, quartzite, bolder, etc.


Core Drilling Mining Equipment
Core Barrel Support: Ax, Bx, Nx, AQ, BQ, NQ, NMLC Series Support
Single, Double, and Triple Tube Core Barrel Support
Casing Support: Axe, Bx, and Nx Casing Support
Drill Rod: Aw, Bw, Nw, Nq All Types of Drill Rod Support
